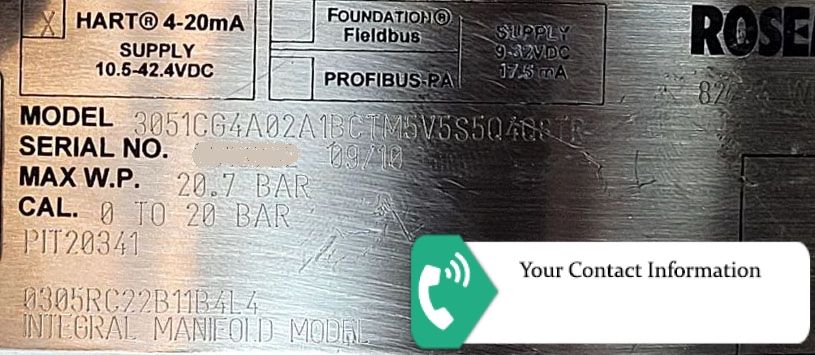

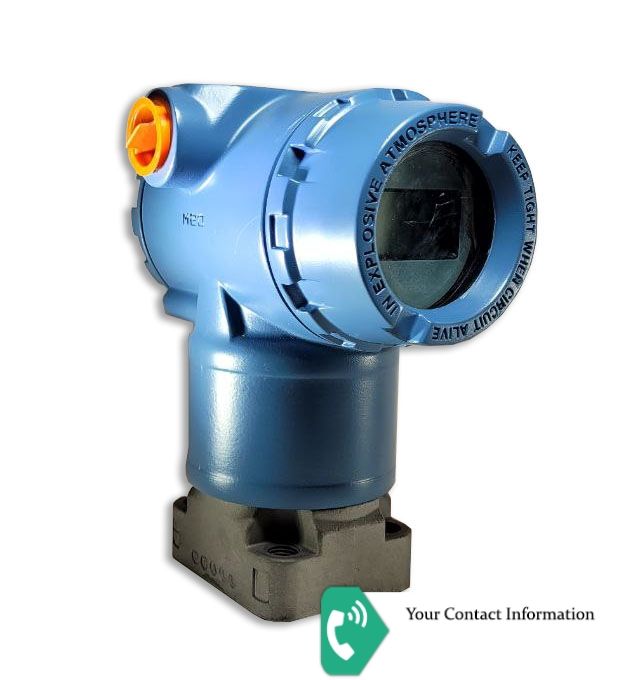

3051CG4A02A1BCTM5V5S5Q4Q8TR
Model: 3051C
Measurement Type: G = Gage
Pressure Range: 4 = -14.2 to 300 psi (20.7 bar)
Transmitter Output: A = 4-20 mA with Digital Signal Based on HART Protocol
Process Flange Type | Flange Material | Drain Vent: 0 = Alternate Process Connection

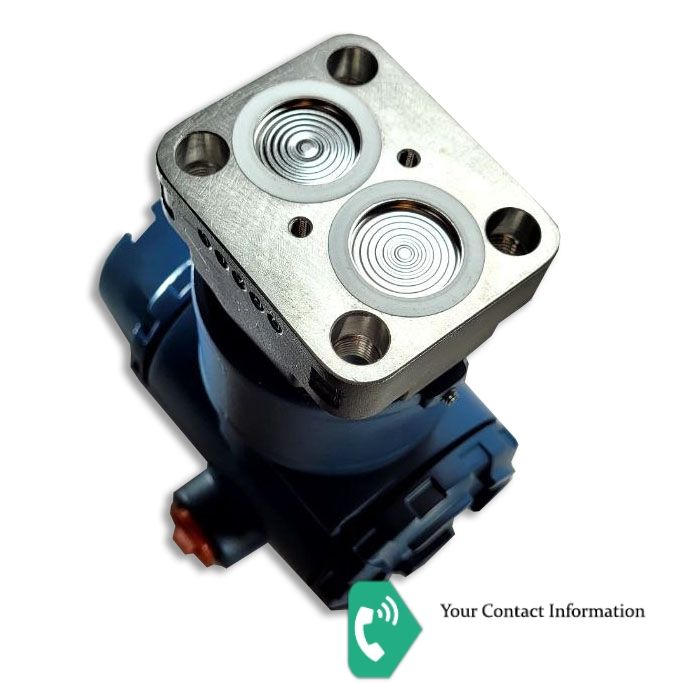

Isolating Diaphragm: 2 = 316L SST
O-Ring: A = Glass-filled PTFE
Sensor Fill Fluid: 1 = Silicone
Housing Material | Conduit Entry Size: B = Aluminum | M20 x 1.5
Alarm Levels: CT = Low alarm (standard Rosemount alarm and saturation levels)
Display and Interface Options: M5 = LCD Display
Ground Screw: V5 = External Ground Screw Assembly
Manifold Assembly: S5 = Assemble to Rosemount 305 Integral Manifold
Calibration Certification: Q4 = Calibration Certificate
Material Traceability Certification: Q8 = Material Traceability Certification per EN 10204 3.1.B
