Yokogawa

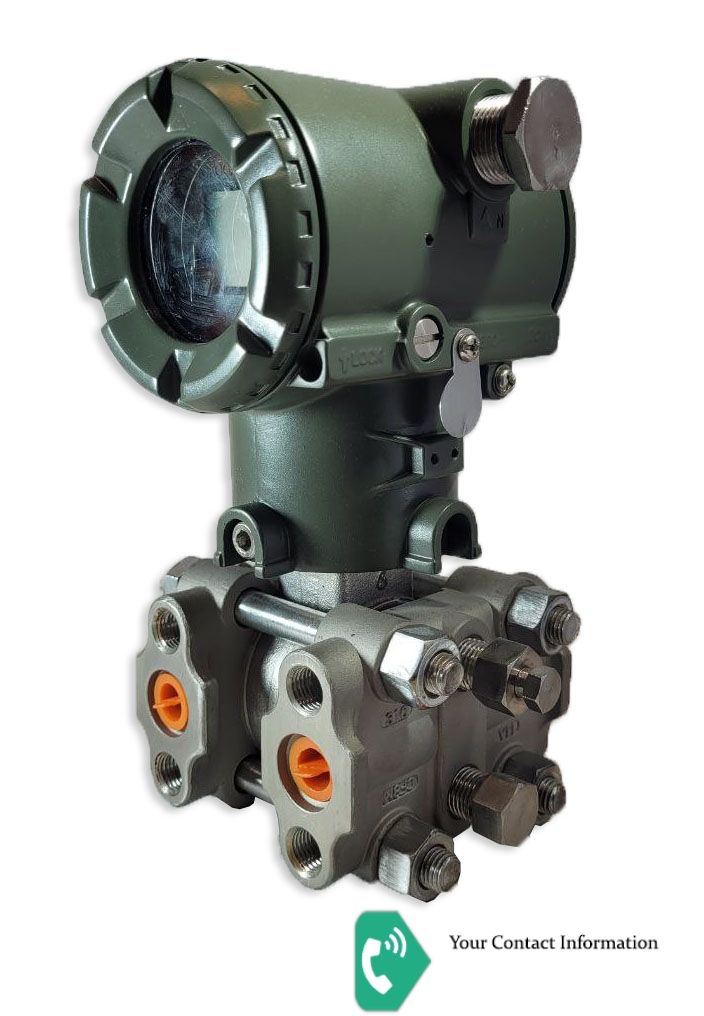

EJA110A-EMS4A-92DA
Model: EJA110A
Output Signal: E = 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00EN)
Measurement span (capsule): M = 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}
Wetted parts materia: S = Body = SCS14A, Capsule = SUS316L, Vent plug = SUS316
Process connections: 4 = with 1/2 NPT female process connector
Bolts and nuts material: A = SCM435 16 MPa {160 kgf/cm2}
Installation: 9 = Horizontal impulse piping type, left side high pressure
Electrical connection: 2 = 1/2 NPT female, two electrical connections without blind plug
Integral indicator: D = Digital indicator
Mounting bracket: A = SECC Carbon steel 2-inch pipe mounting (flat type)
