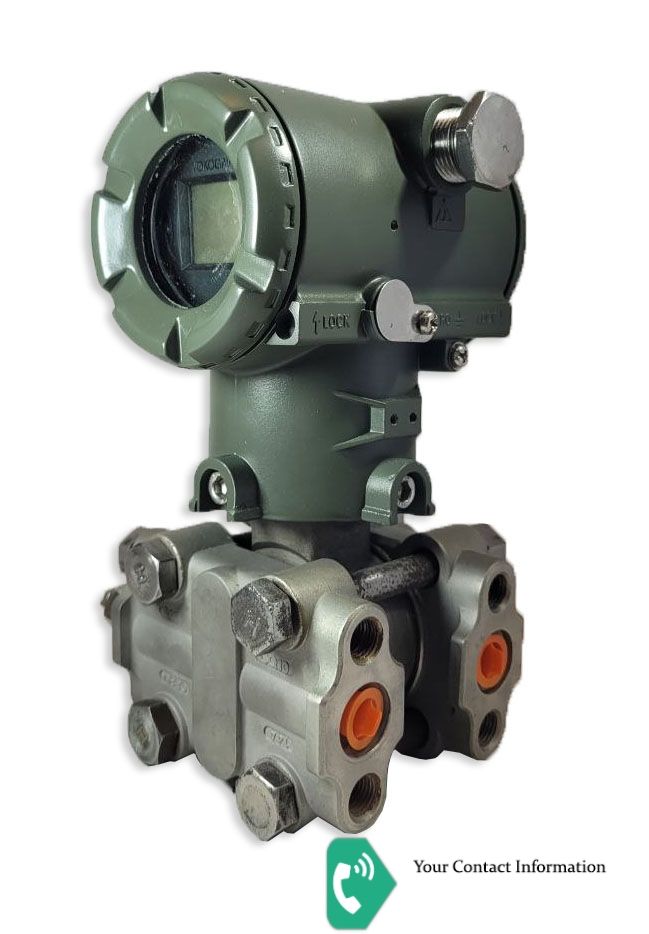

EJA110A-EMS5A97DA/NS11

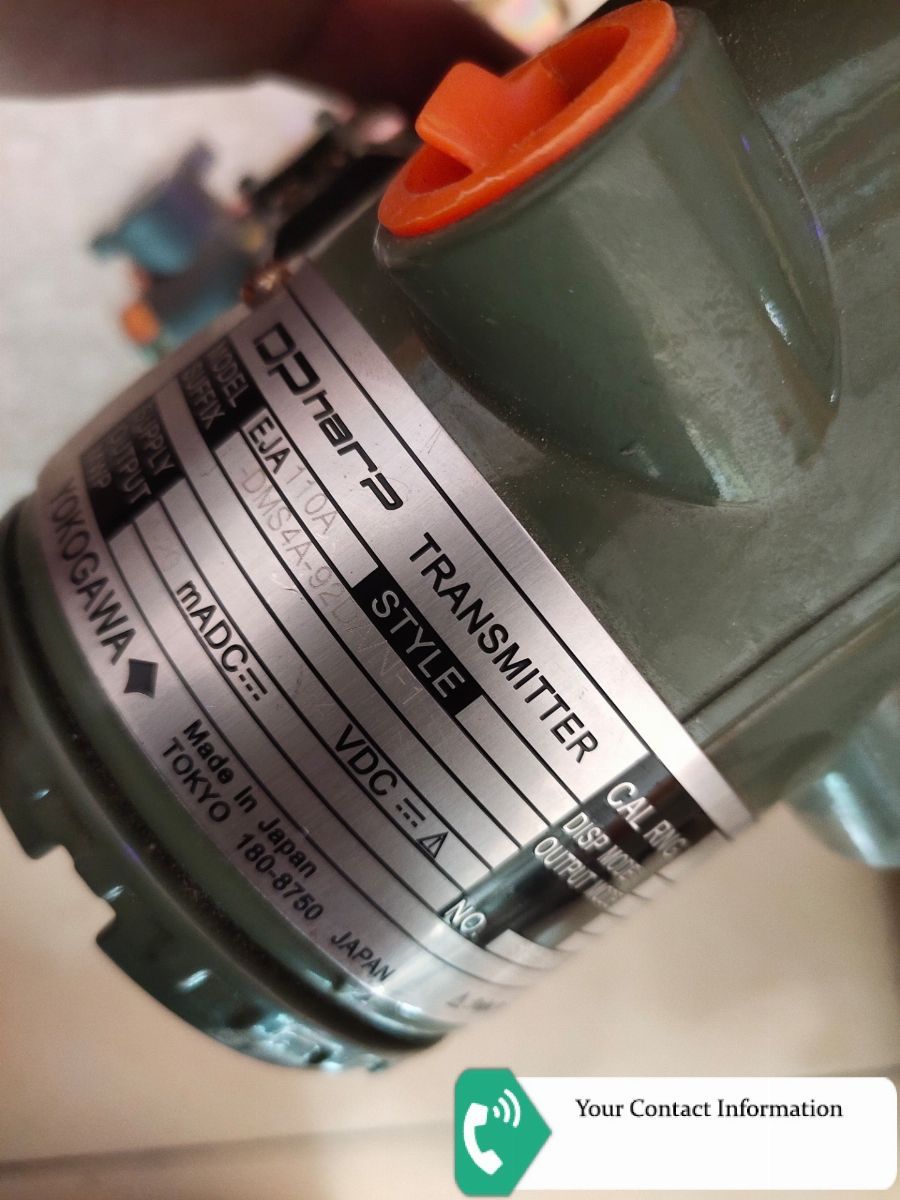

Model: EJA110A
Output Signal: E = 4 to 20 mA DC with digital communication (HART protocol, see IM 01C22T01-01E)
Measurement span (capsule): M = 1 to 100 kPa {100 to 10000 mmH2O}
Wetted parts material: S = Body = SCS14A, Capsule = SUS316L, Vent plug = SUS316
Process connections: 5 = without process connector (1/4 NPT female on the cover flanges)
Bolts and nuts material: A = SCM435 16 MPa {160 kgf/cm2}
Installation: 9 = Horizontal impulse piping type, left side high pressure
Electrical connection: 7 = 1/2 NPT female, two electrical connections and a blind plug
Integral indicator: D = Digital indicator
Mounting bracket: A = SECC Carbon steel 2-inch pipe mounting (flat type)
Optional codes: NS11
