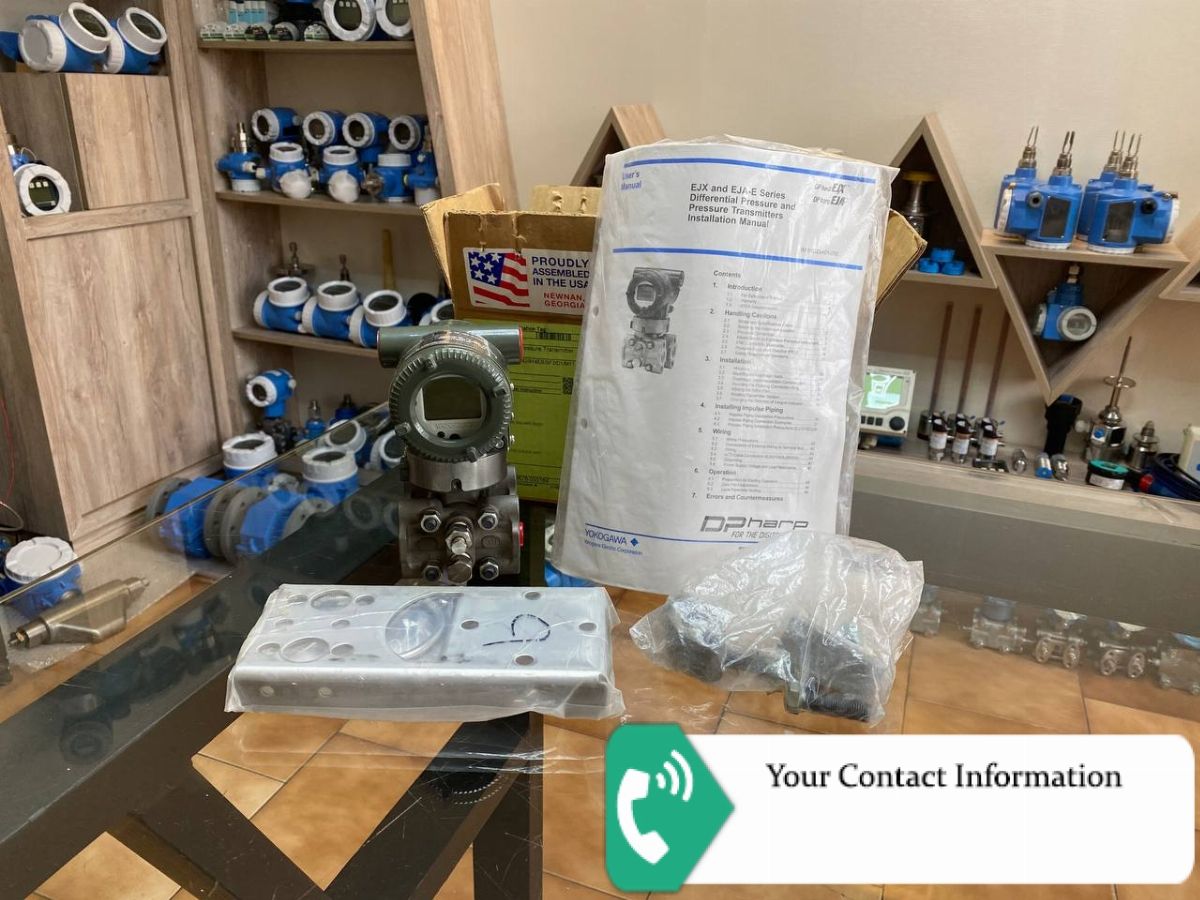

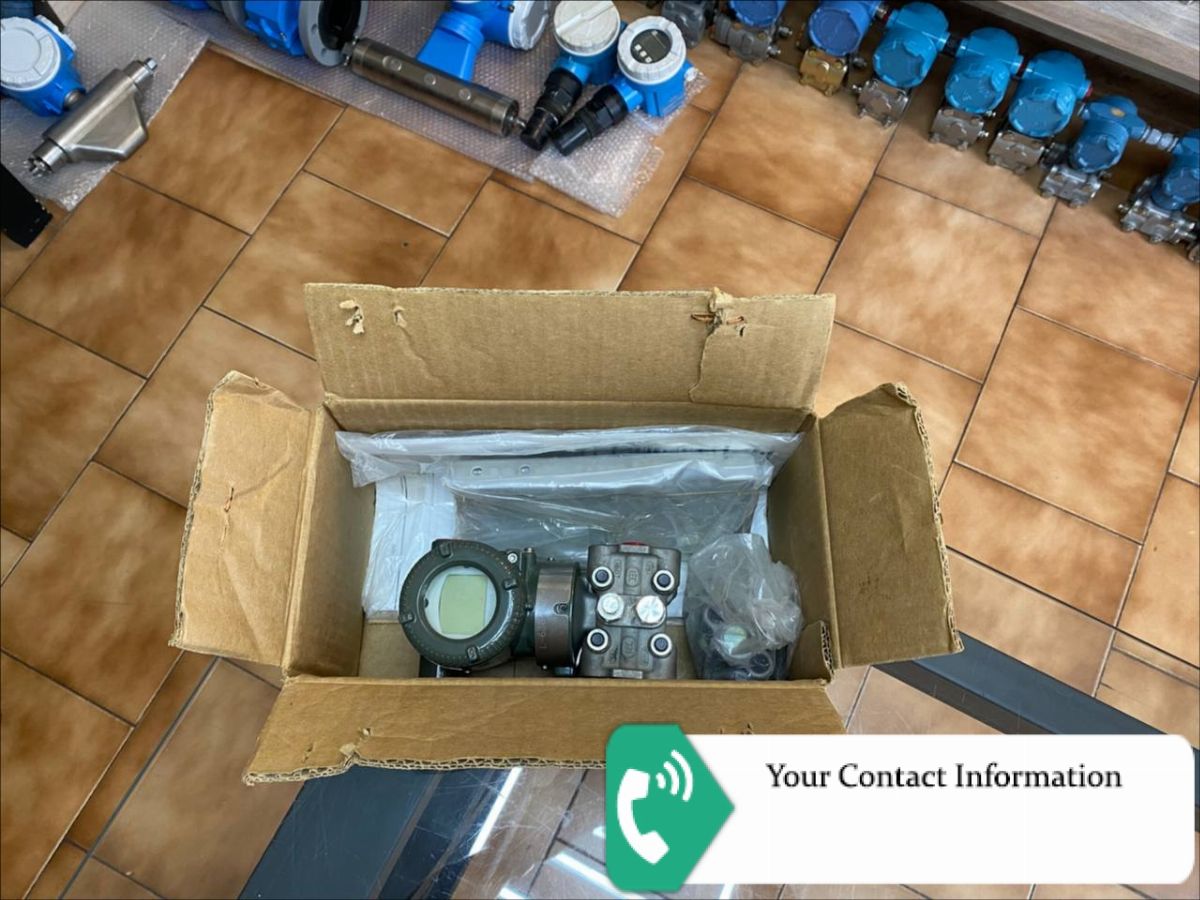

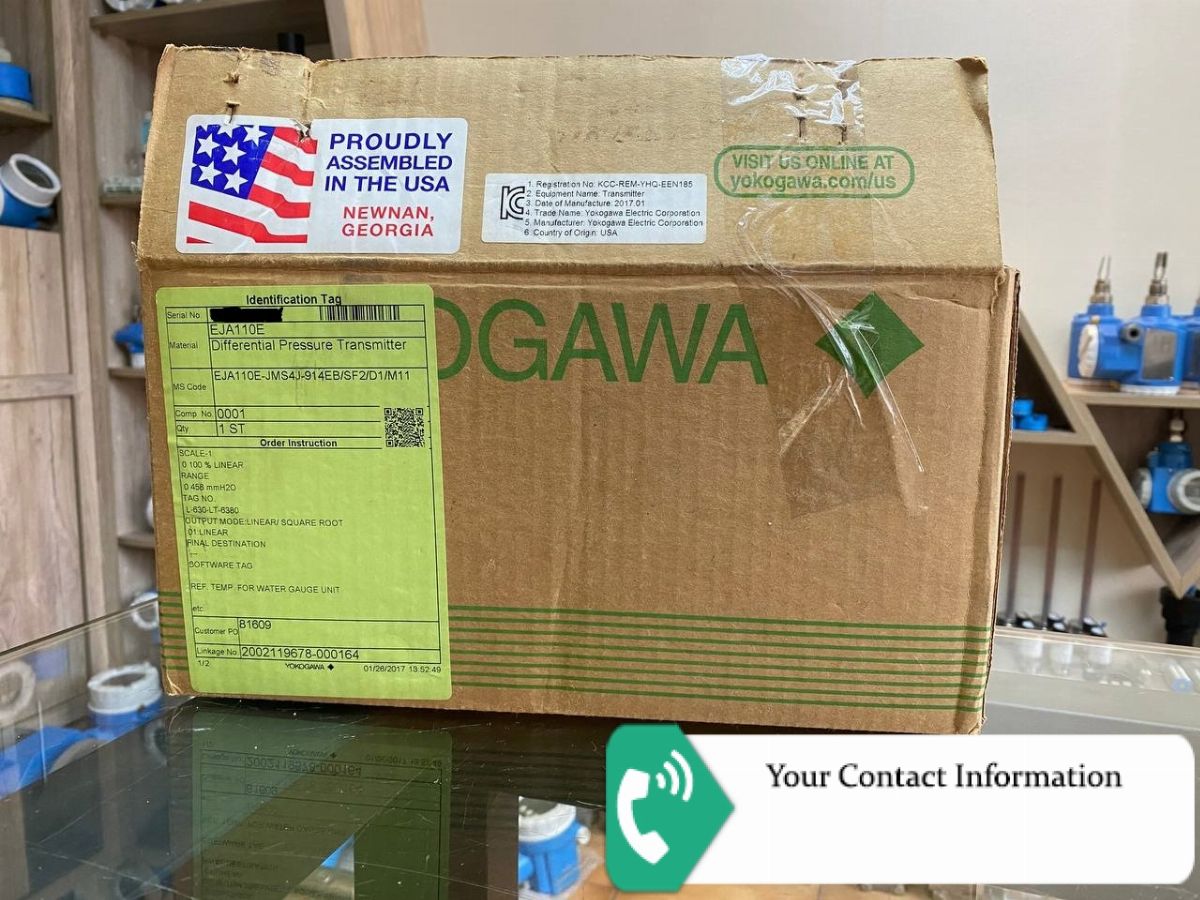

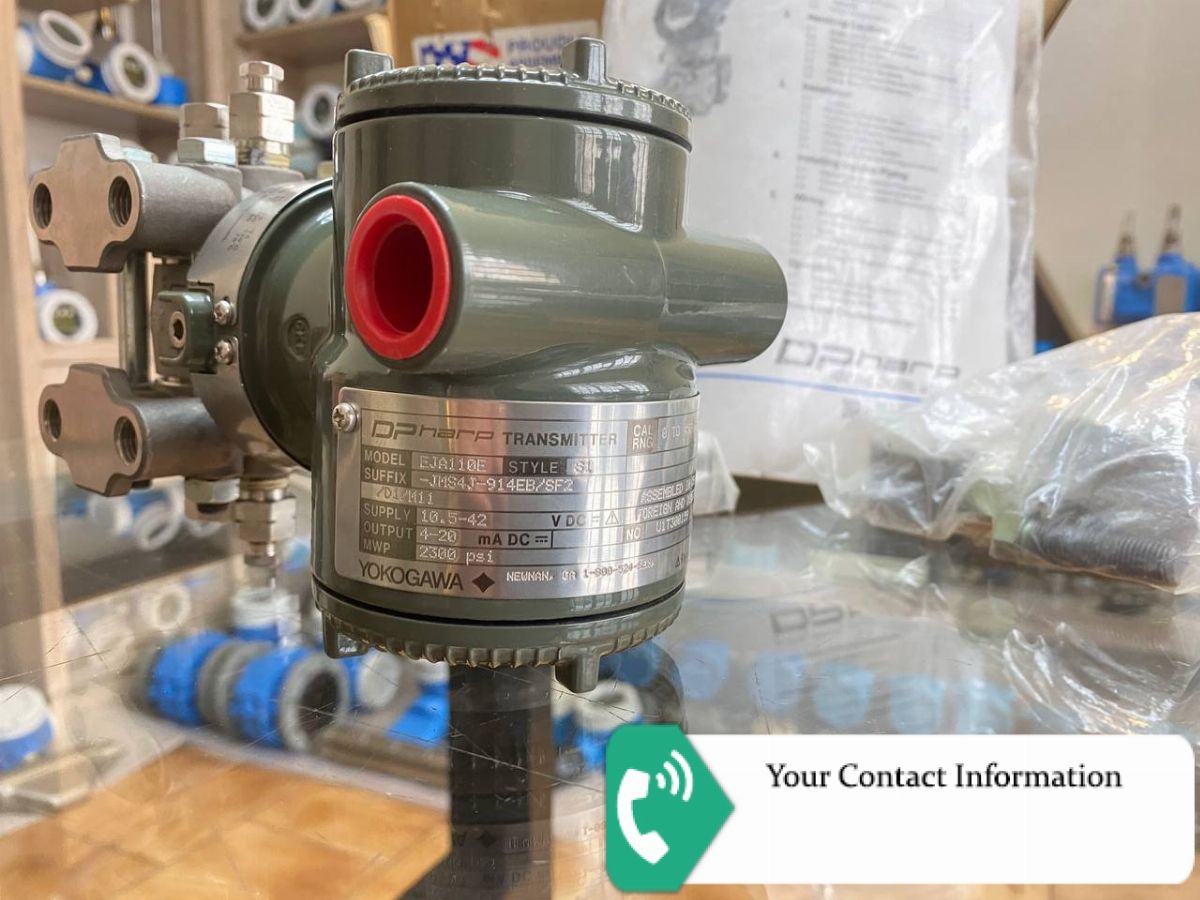

EJA110E-JMS4G-914EB/SF2/D1/M11
Model: EJA110E
Output signa: J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule): M = 1 to 100 kPa (4 to 400 inH2O)
Wetted parts materia: S = Cover flange and process connector = ASTM CF-8M, Capsule = Hastelloy C-276 *2 (Diaphragm)
F316L SST, 316L SST (Others), Capsule gasket = Teflon-coated 316L SST, Vent/Drain plug = 316 SST
Process connections see the table in the next page for the codes for a diaphragm seal system: 4 = with 1/2 NPT female process connector
Bolts and nuts material: G = 316L SST
Installation: 9 = Horizontal piping and left side high pressure
Amplifier housing: 1 = Cast aluminum alloy
Electrical connection: 4 = M20 female, two electrical connections without blind plugs
Integral indicator: E = Digital indicator with the range setting switch (push button)
Mounting bracket: B = 304 SST 2-inch pipe mounting, flat type (for horizontal piping)
Optional Codes: SF2/D1/M11
