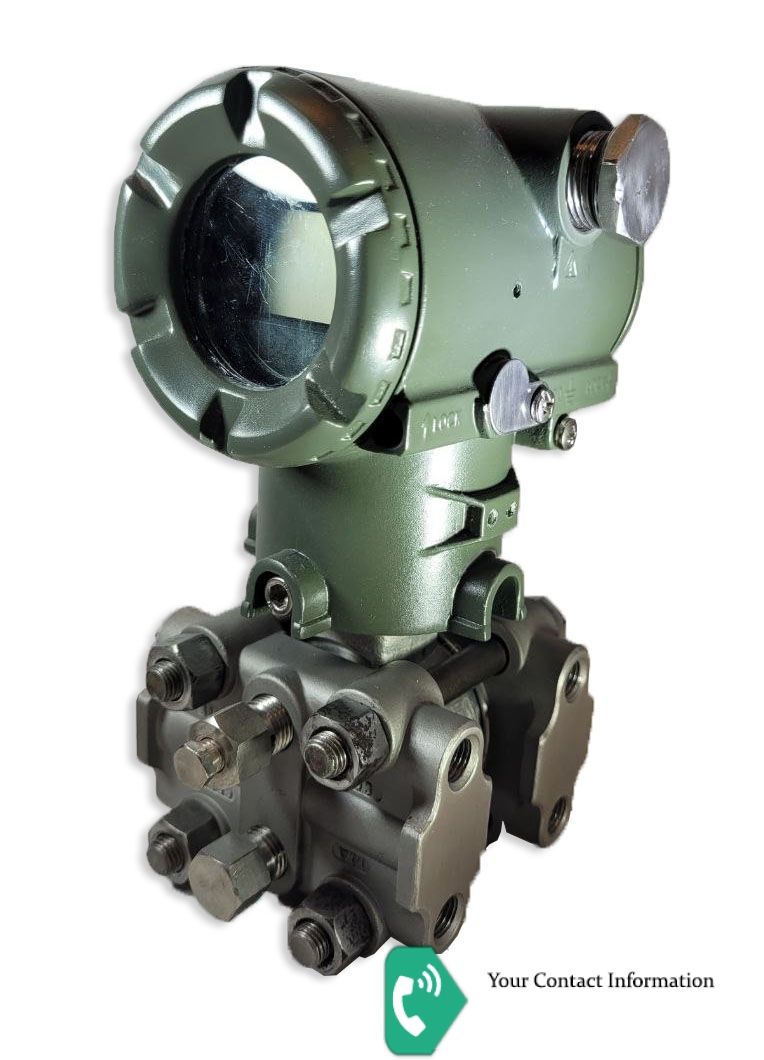

Yokogawa
EJA118W-DMSAEA-AA0297DA/NF1
Model: EJA118W
Output Signal: D = 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span (capsule): M = 2.5 to 100 kPa {250 to 10000 mmH2O}
Wetted parts material: S = Diaphragm = JIS SUS316L, Others = JIS SUS316L
Process flange rating: A1 = ANSI class 150
Process flange size / materia: E = 3-inch (80 mm) / JIS SUS304
Cover flange bolts material = A = JIS SCM435
Fill fluid: A = For general use (silicone oil) = Process temp = –10 to 250°C, Ambient temp = –10 to 60°C
A = Always A
Capillary length (m): = Specify capillary length from 1 to 10 m in . (Example for 2 m: 02)
Installation: 9 = Horizontal impulse piping type, left side high pressure
Electrical connection: 7 = 1/2 NPT female, two electrical connections and a blind plug
Integral indicator: D = Digital indicator
Mounting bracket: A = JIS SECC 2-inch pipe mounting (flat type)
Optional codes = NF1
