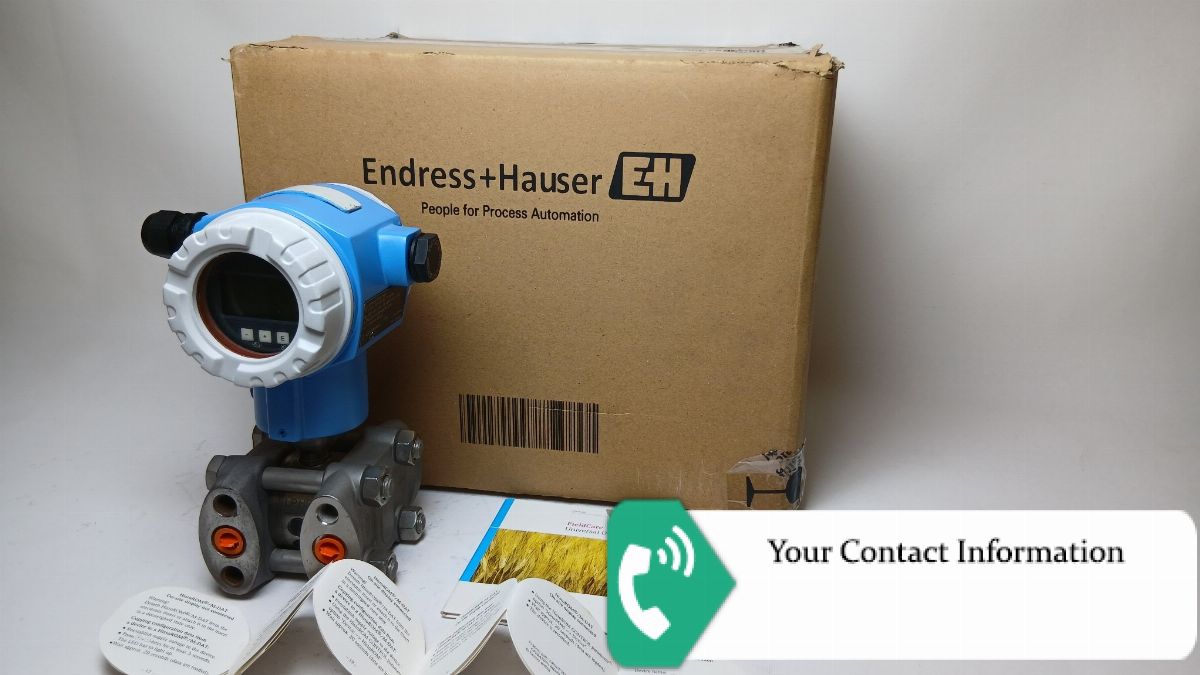

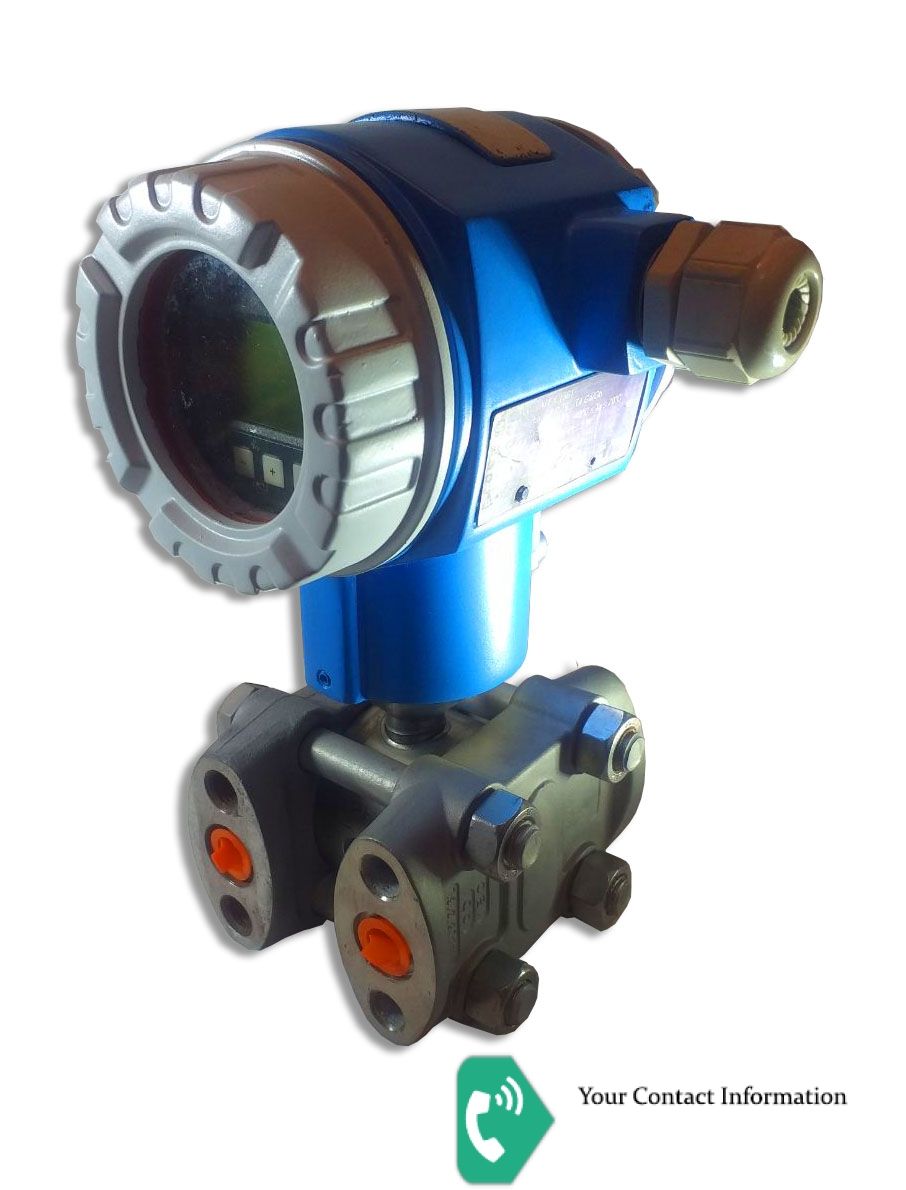

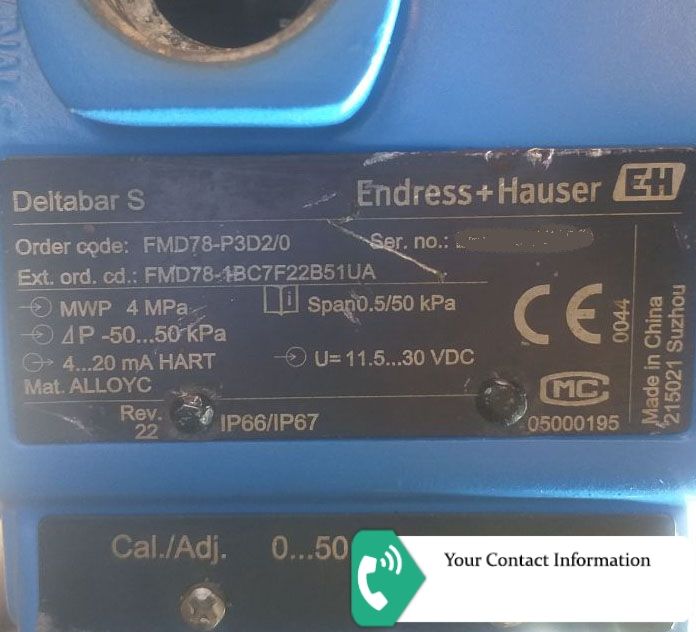

FMD78-1BC7F22B51UA
Approval: 1 = ATEX II 1/2G Ex ia IIC T6
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: C = T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Nominal Range; Cell Material; PN: 7F = 500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit: 2 = Nominal range; kPa/MPa
Membrane Material: 2 = AlloyC276
Process Connection: B5 = DN80 PN10-40 B1, 316L flange EN1092-1
Fill Fluid: 1 = ..... m capillary, silicone oil
Additional Option 1: U = Mounting bracket, wall/pipe, 316L, heavy duty design
Additional Option 2: A = Not selected
