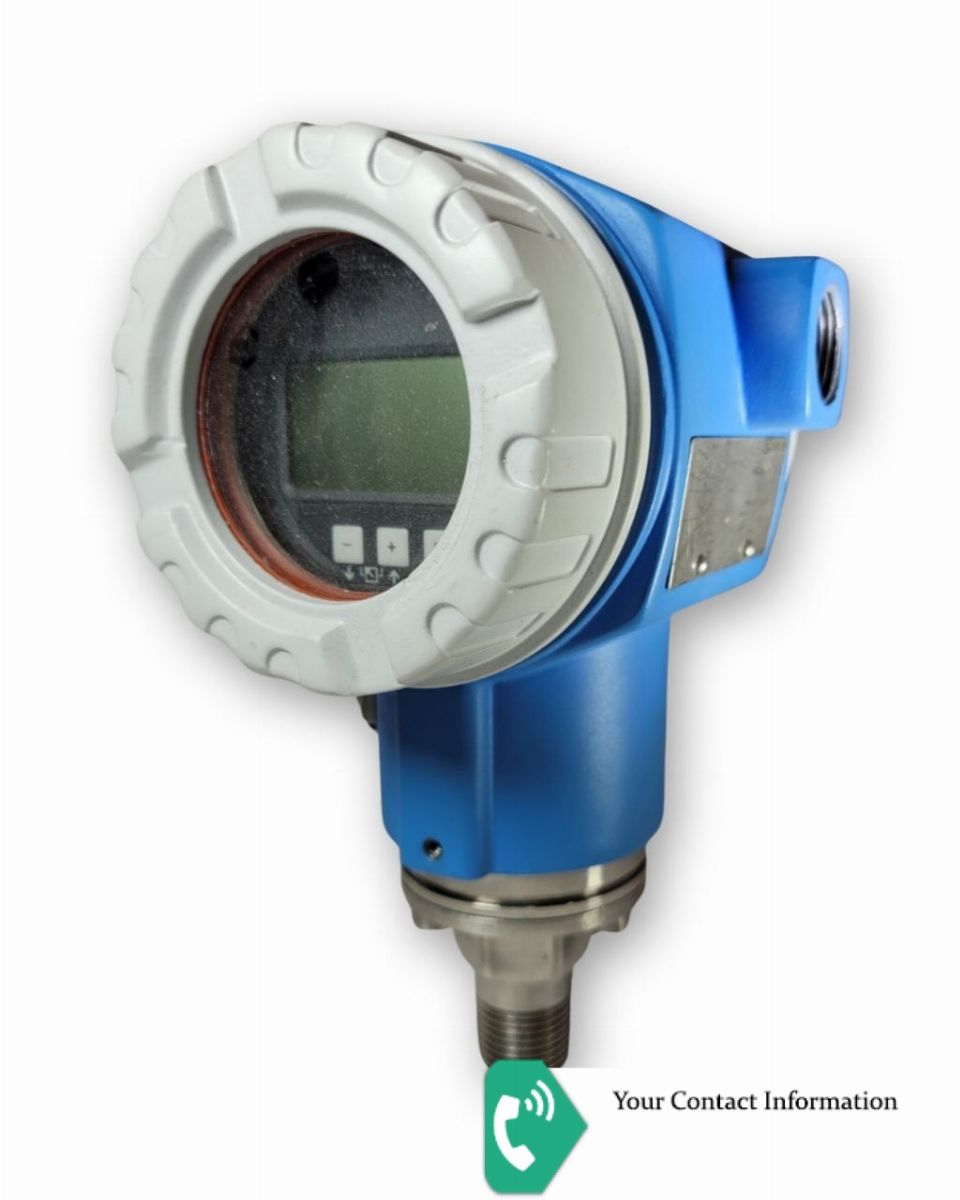

Cerabar S PMC71

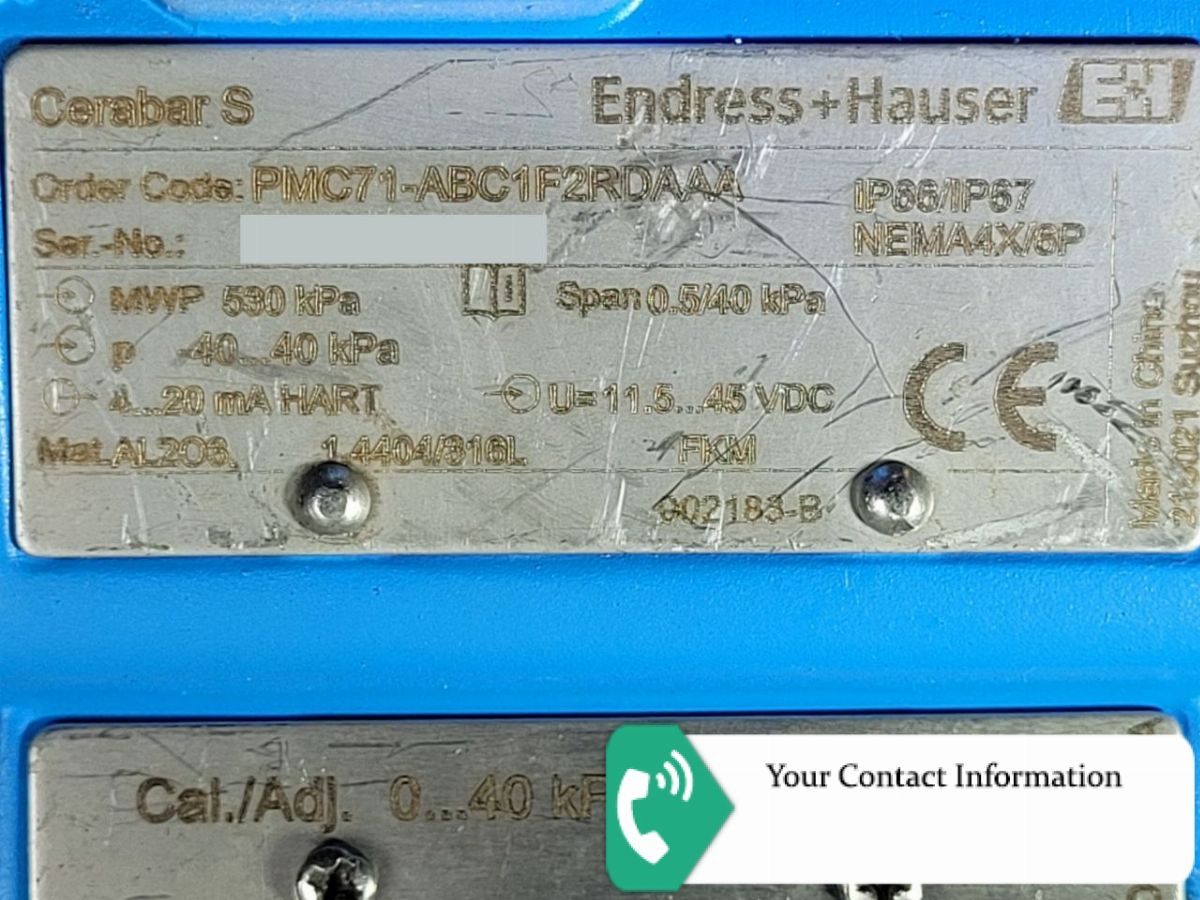

PMC71-ABC1F2RDAAA
Approval: A = Non-hazardous area
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: C = T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range; Sensor Overload Limit: 1F = 400mbar/40kPa/6psi gauge; 8bar/800kPa/116psi
Calibration; Unit: 2 = Sensor range; kPa/MPa
Process Connection: RD = Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: A = FKM
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
