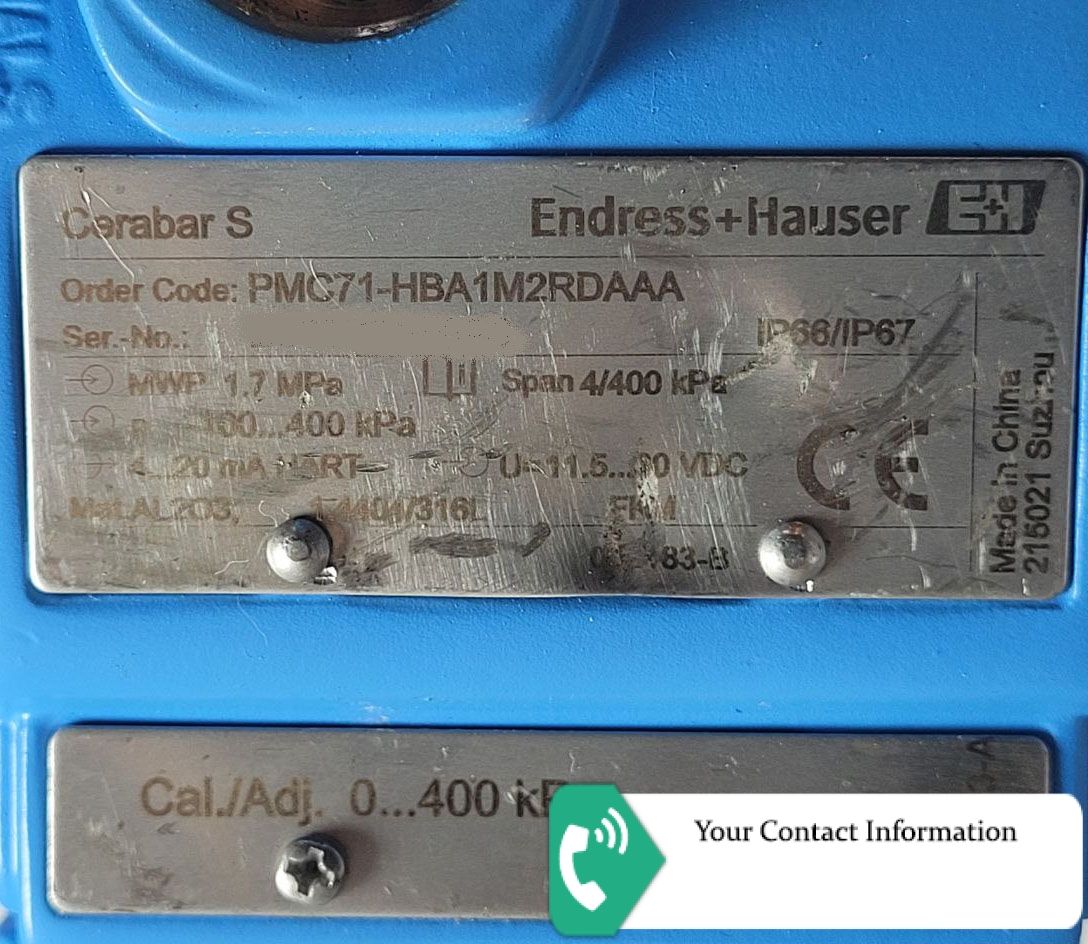

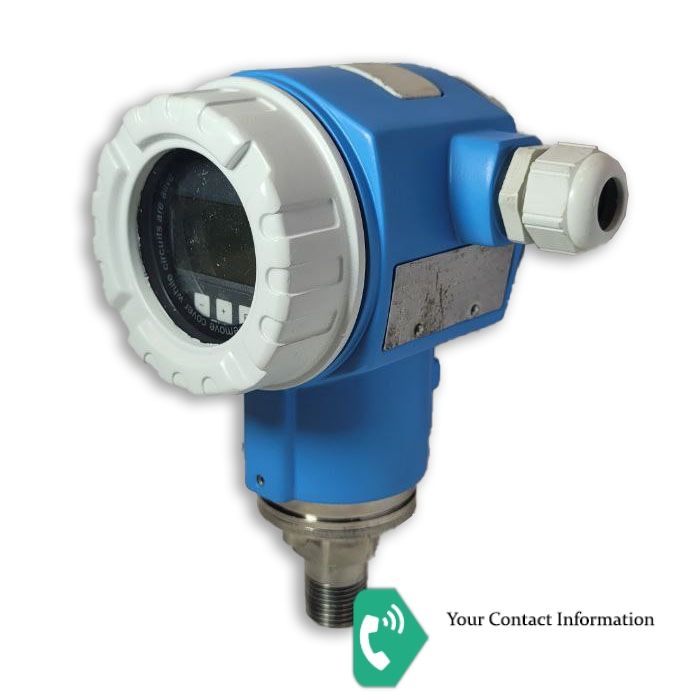

PMC71-HBA1M2RDAAA
Approval: H = NEPSI Ex ia IIC T6
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Sensor Range; Sensor Overload Limit: 1M = 4bar/400kPa/60psi gauge; 25bar/2500kPa/375psi
Calibration; Unit: 2 = Sensor range; kPa/MPa
Process Connection: RD = Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: A = FKM
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
