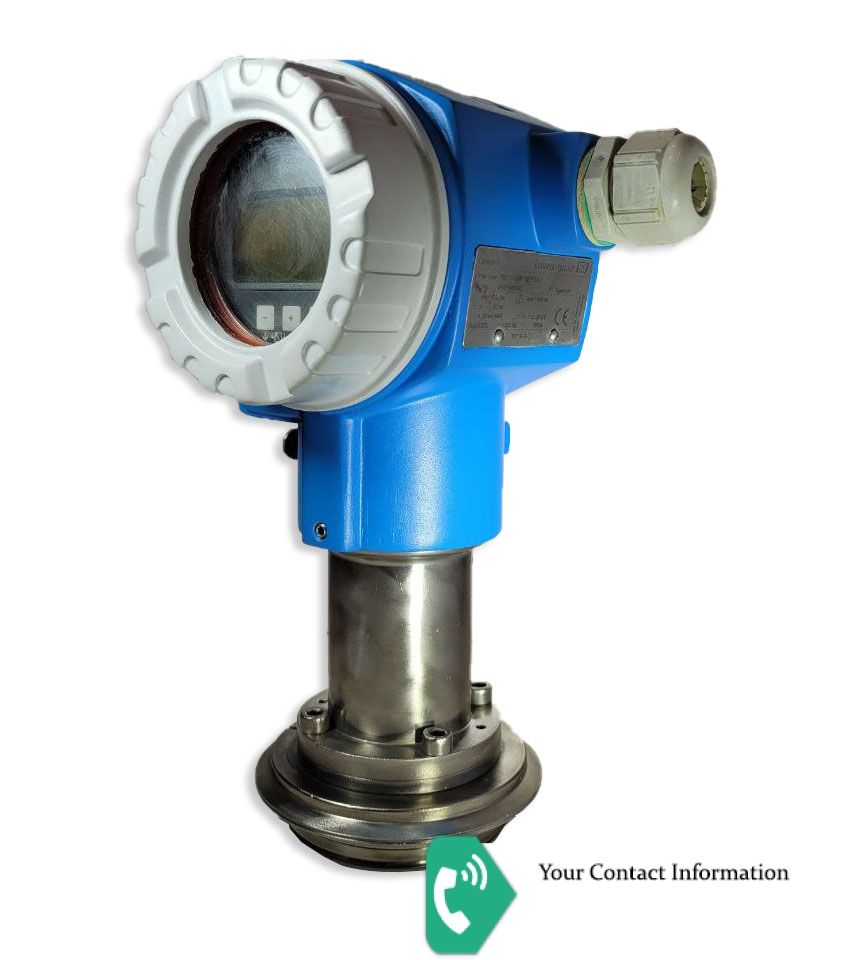

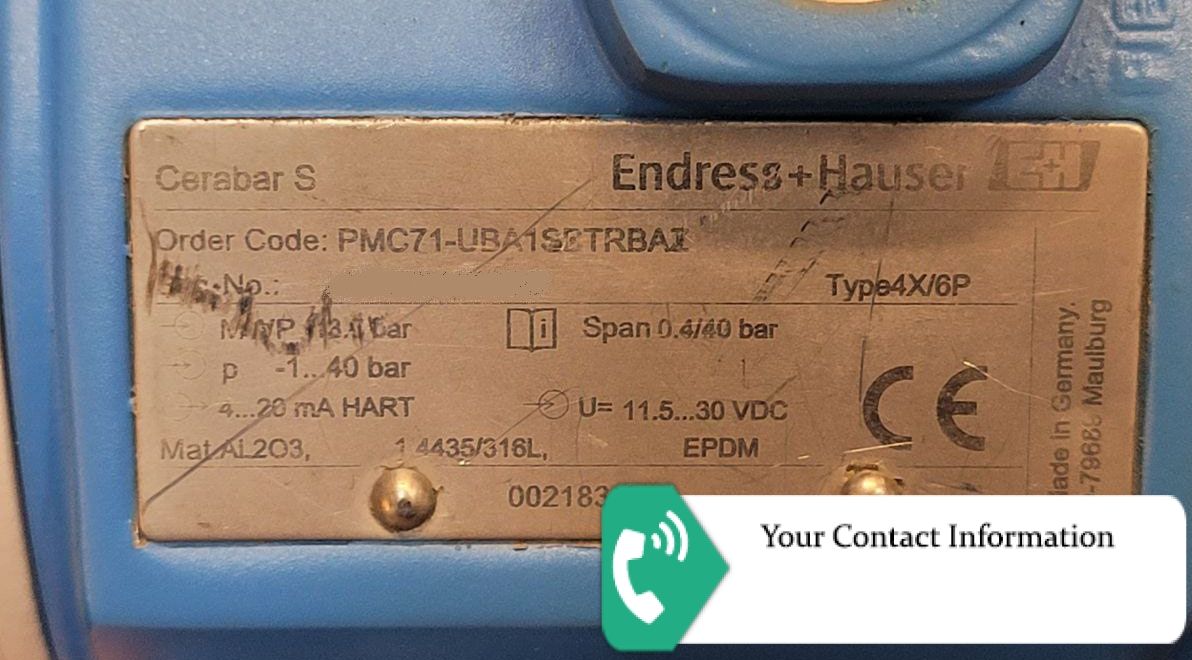

PMC71-UBA1SBTRBAZ
Approval: U = CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I Div.2 Gr.A-D, Ex ia, C: zone 0,1,2/ US: zone 0,1,2,20,21,22
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Sensor Range; Sensor Overload Limit: 1S = 40bar/4MPa/600psi gauge; 60bar/6MPa/900psi
Calibration; Unit: B = Customised; see additional spec

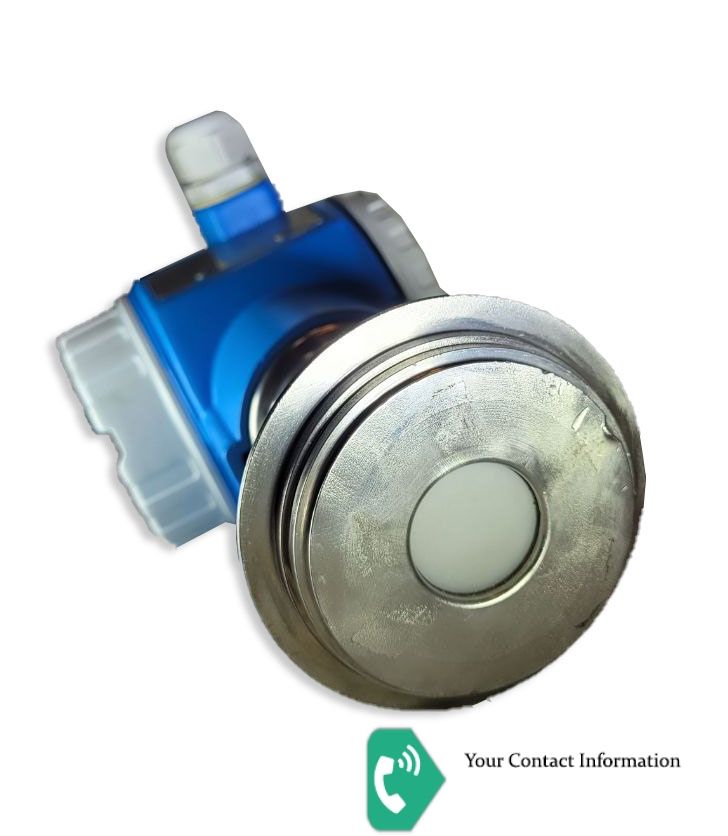

Process Connection: TR = Varivent N tube DN40-162 PN40, 316L, flush mount, 3A available in combination with seal NBR/EPDM only
Seal: B = EPDM
Additional Option 1: A = Not selected
Additional Option 2: Z = Customer specific version
