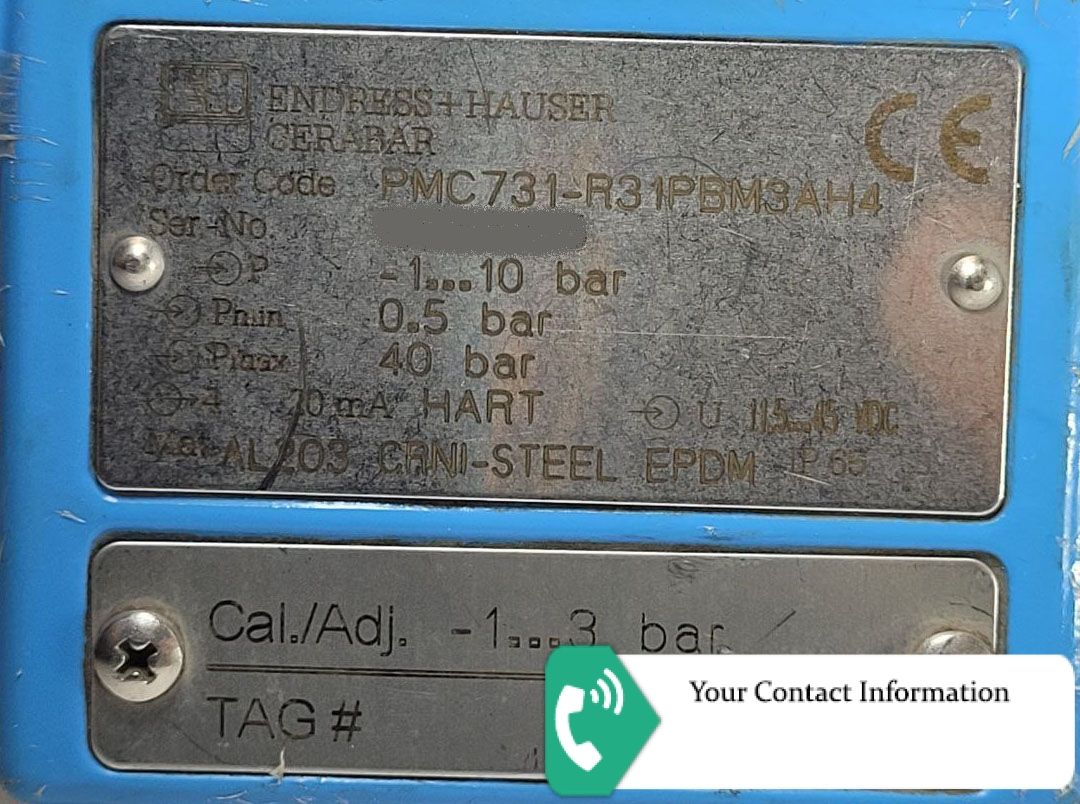

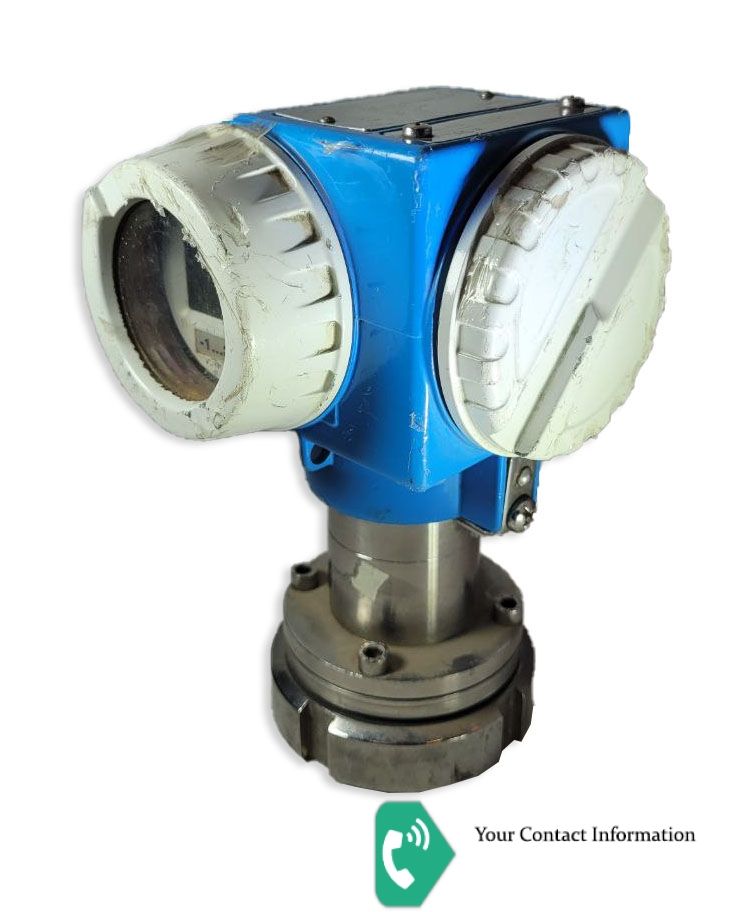

PMC731-R31PBM3AH4
Approval: R = Non-hazardous area
Housing; Cable Entry: 3 = Alu + LCD; gland M20 (EEx d > thread M20)
Sensor Range; Sensor Overload Limit: 1P = 0...10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
Calibration; Unit: B = Customised; see additional spec. + Protocol
Output: M = 4-20mA Hart + advanced software
Additional Option: 3 = EN10204-3.1 material (wetted parts) inspection certificate

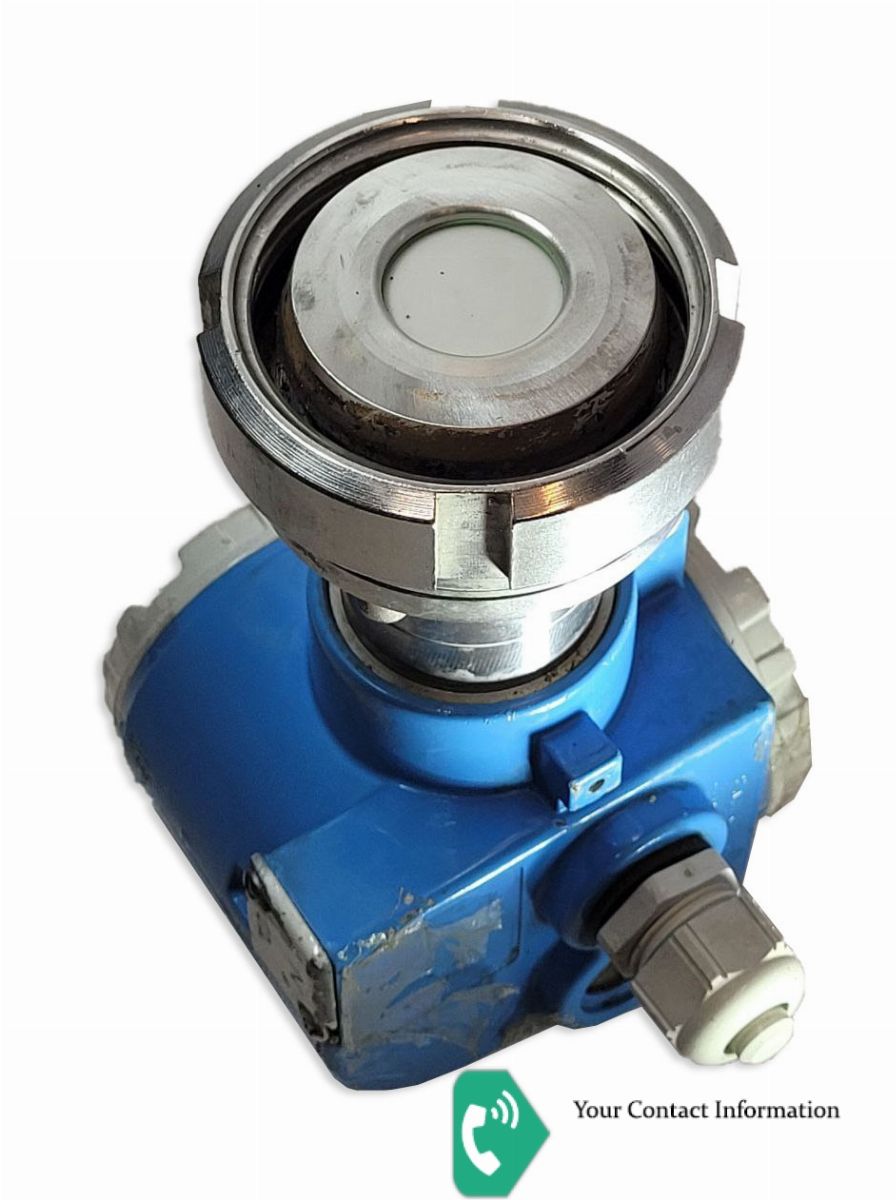

Process Connection: AH = DIN11851 DN40 PN40, 316L,Ceramic flushm
Seal: 4 = EPDM
