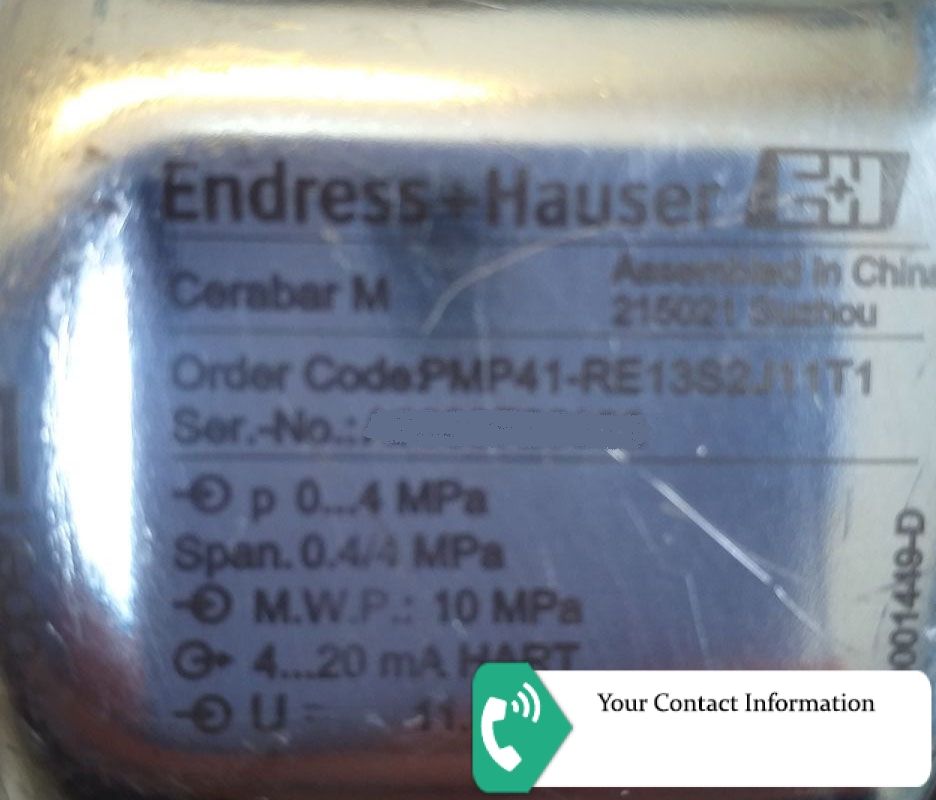

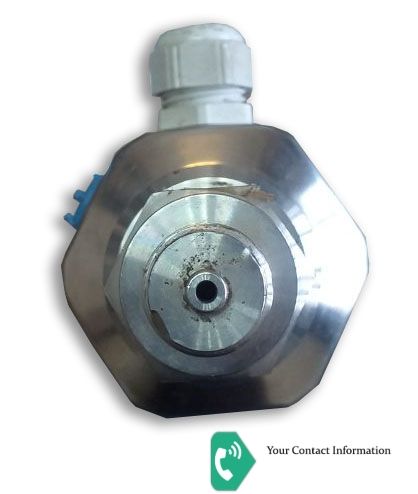

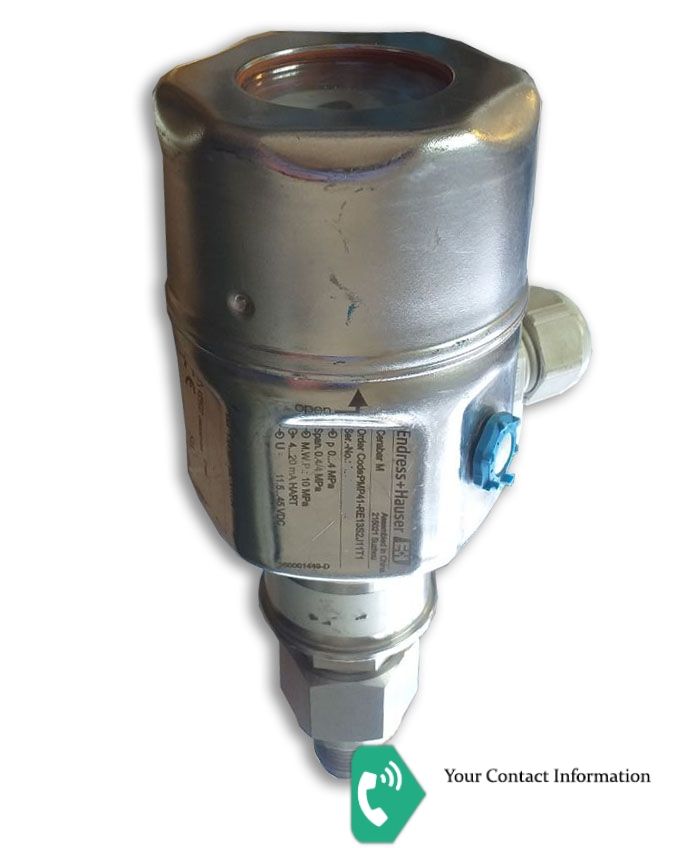

PMP41-RE13S2J11T1
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 3S = 0...40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi
Calibration; Unit: 2 = 0.2% sensor range; kPa/MPa
Output; Operating: J = 4-20mA HART; display 4-digit + bargraph
Additional Option: 1 = Basic version
Process Connection: 1T = Thread DIN13 M20x1.5, 316L
Seal; Fill Fluid: 1 = FKM Viton; Synthetic oil
