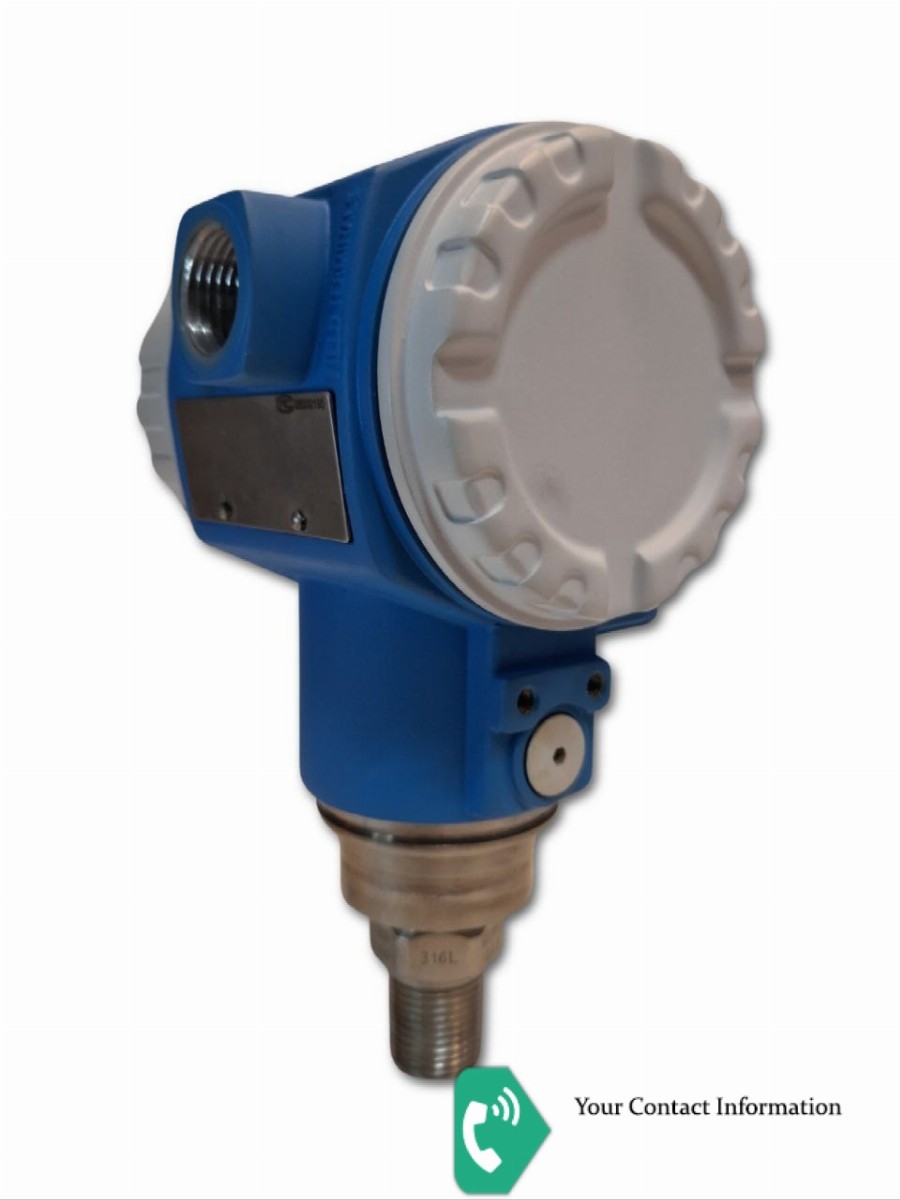

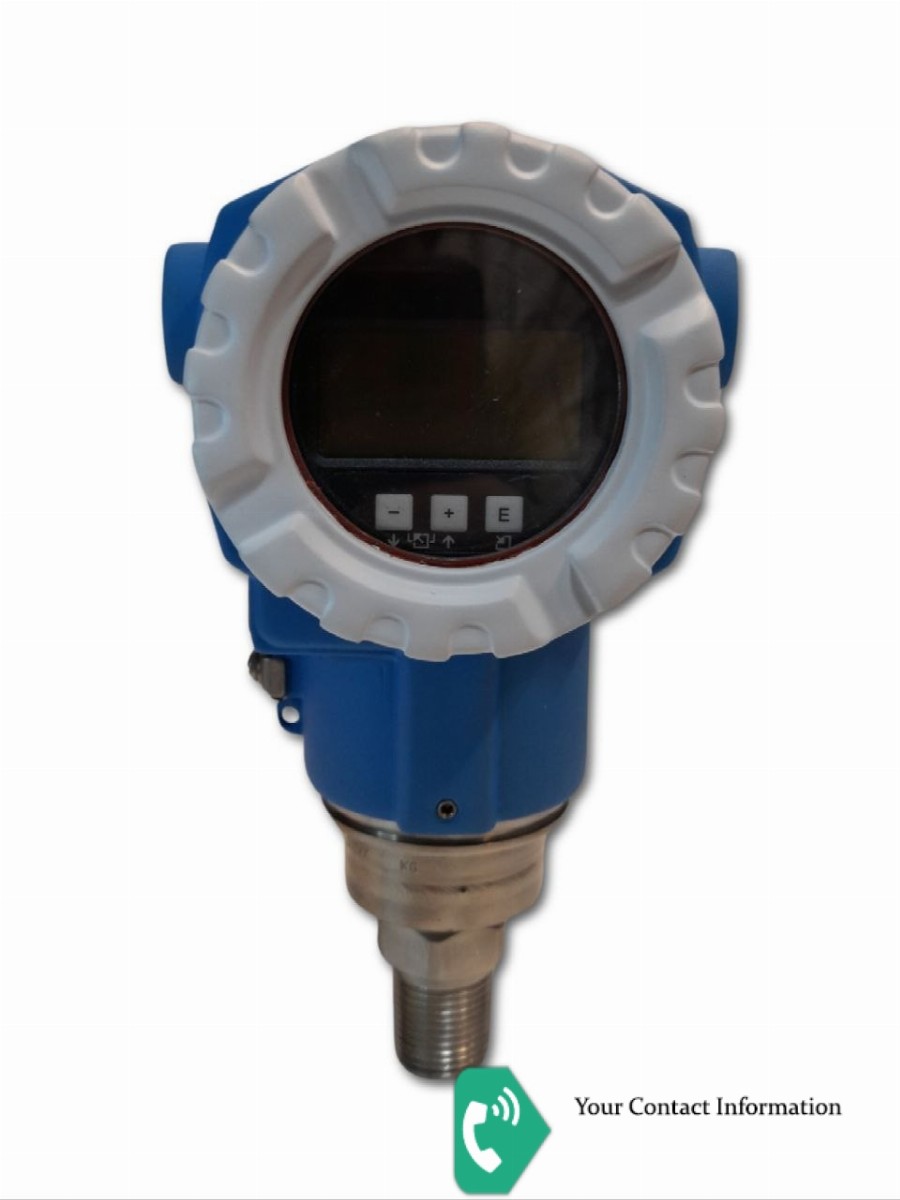

Cerabar S PMP71

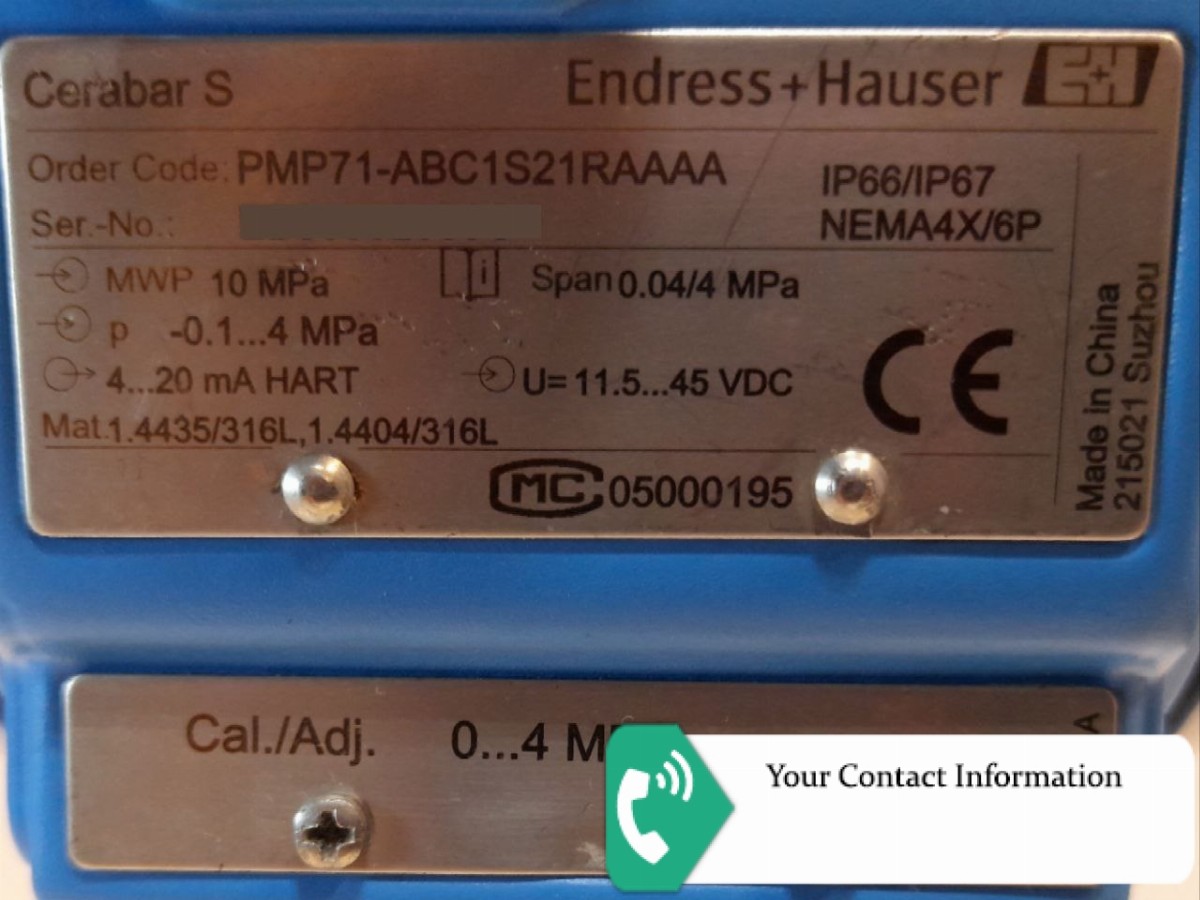

PMP71-ABC1S21RAAAA
Approval: A = Non-hazardous area
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: C = T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range; Sensor Overload Limit: 1S = 40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi
Calibration; Unit: 2 = Sensor range; kPa/MPa
Membrane Material: 1 = 316L
Process Connection: RA = Thread ANSI MNPT1/2 FNPT1/4, 316L
Fill Fluid: A = Silicone oil
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
