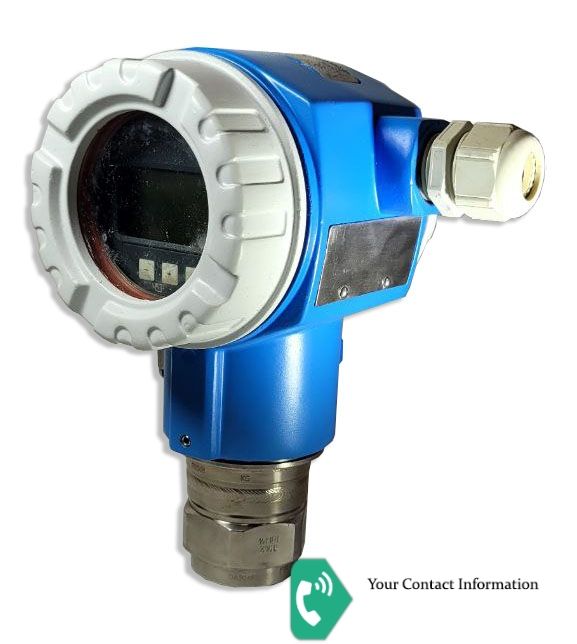

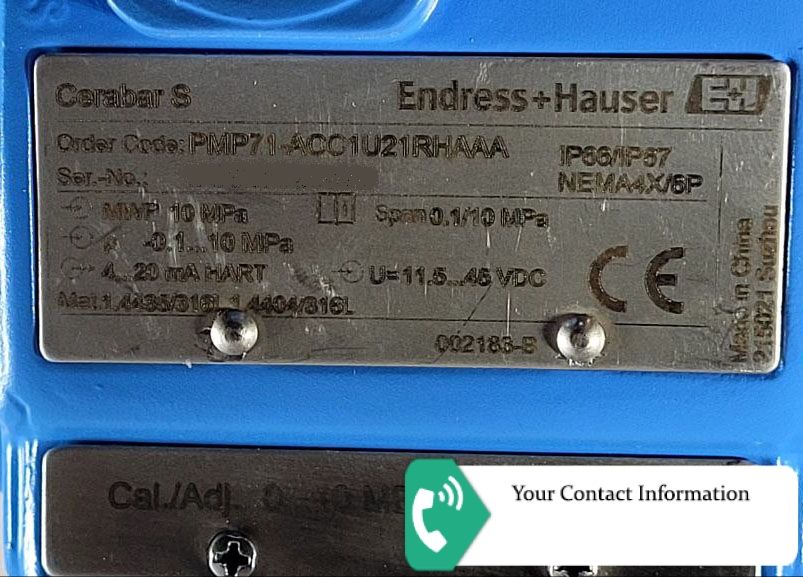

PMP71-ACC1U21RHAAA
Approval: A = Non-hazardous area
Output; Operating: C = 4-20mA HART; inside
Housing; Cover Sealing; Cable Entry: C = T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range; Sensor Overload Limit: 1U = 100bar/10MPa/1500psi gauge; 400bar/40MPa/6000psi
Calibration; Unit: 2 = Sensor range; kPa/MPa
Membrane Material: 1 = 316L
Process Connection: RH = Thread ANSI FNPT1/2, 316L
Fill Fluid: A = Silicone oil
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
