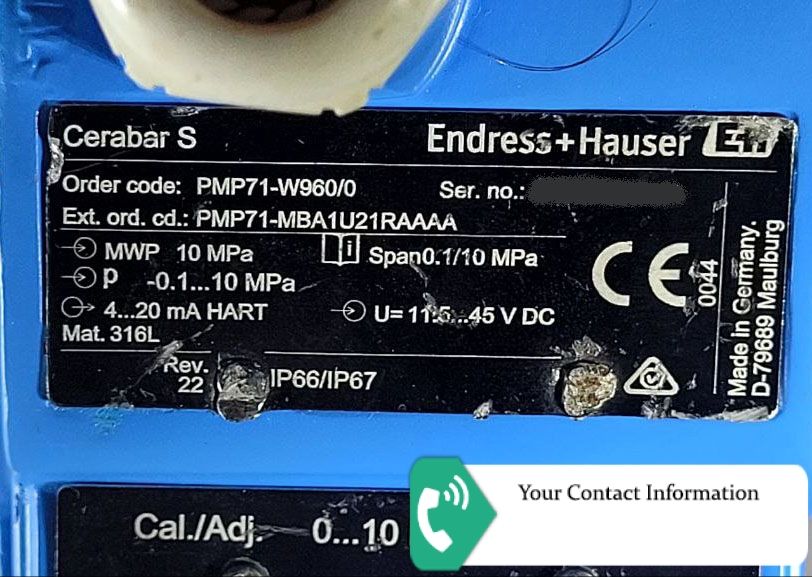

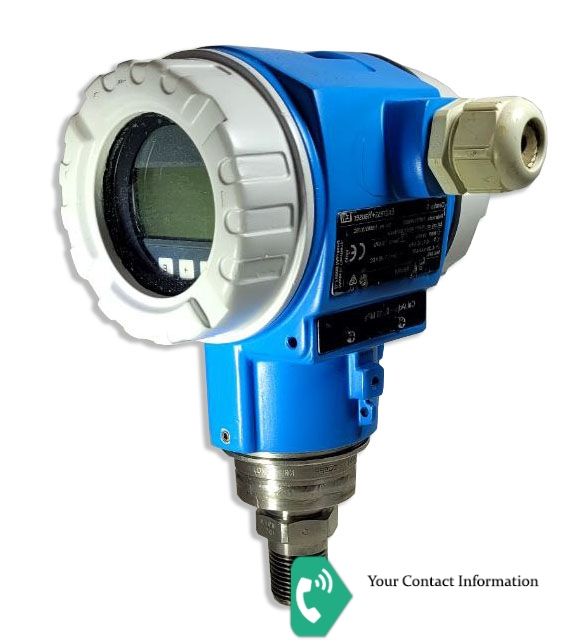

PMP71-MBA1U21RAAAA
Approval: M = IEC Ex db IIC T6 Gb
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Sensor Range; Sensor Overload Limit: 1U = 100bar/10MPa/1500psi gauge; 400bar/40MPa/6000psi
Calibration; Unit: 2 = Sensor range; kPa/MPa
Membrane Material: 1 = 316L
Process Connection: RA = Thread ANSI MNPT1/2 FNPT1/4, 316L
Fill Fluid: A = Silicone oil
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
