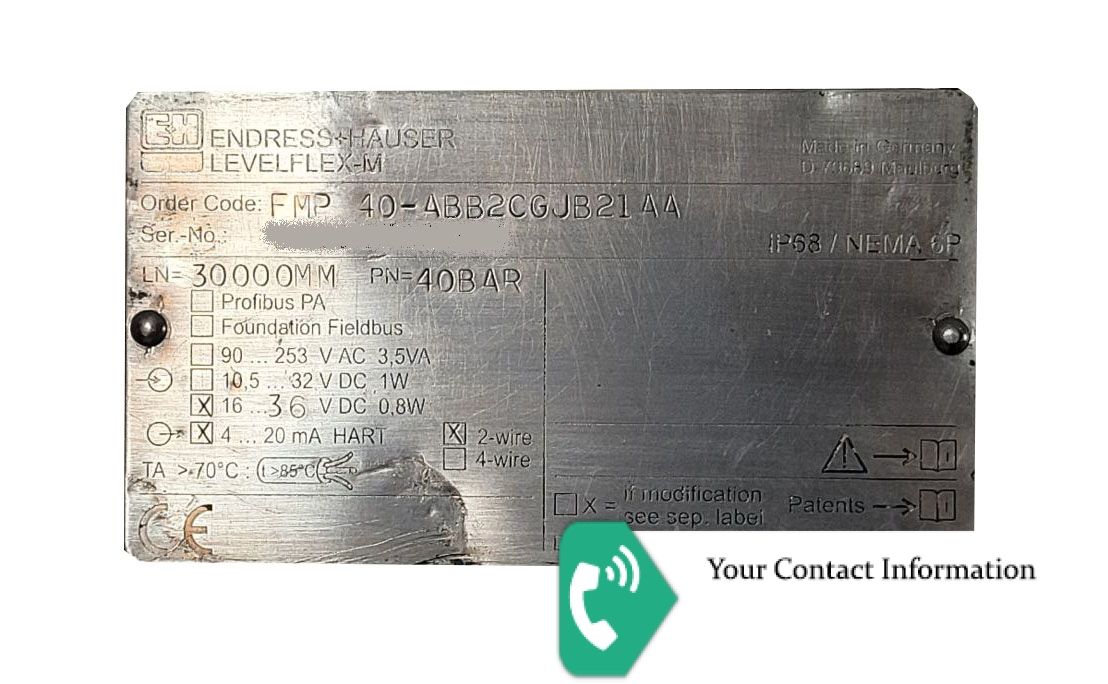

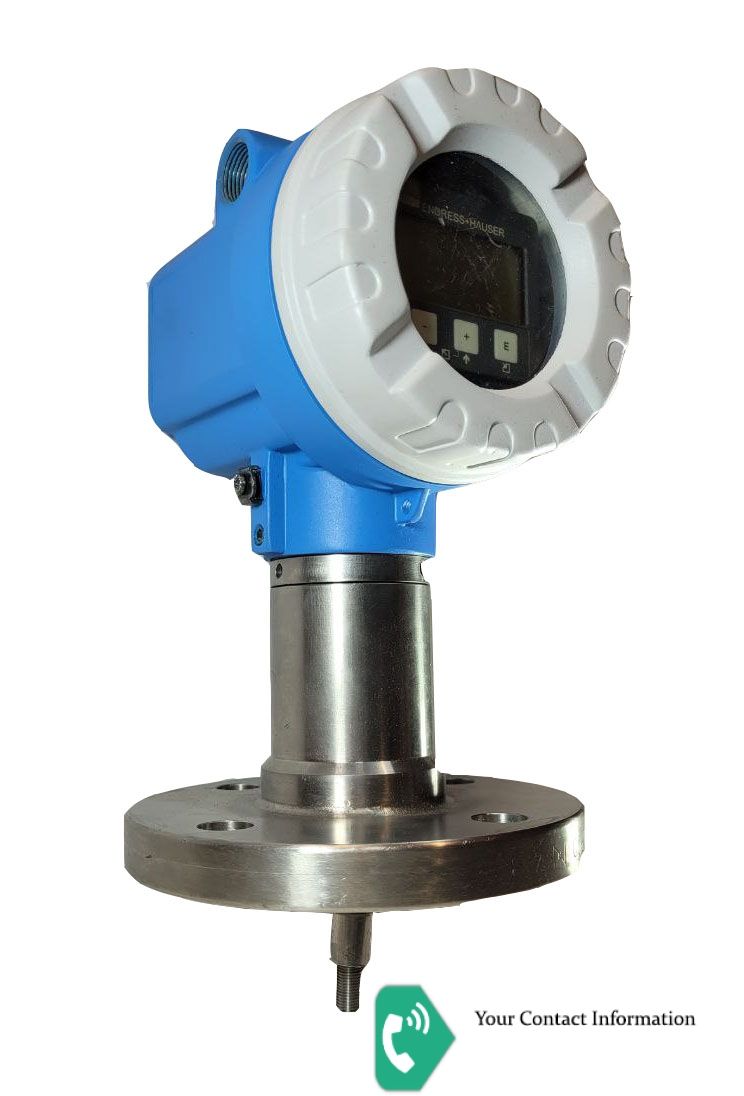

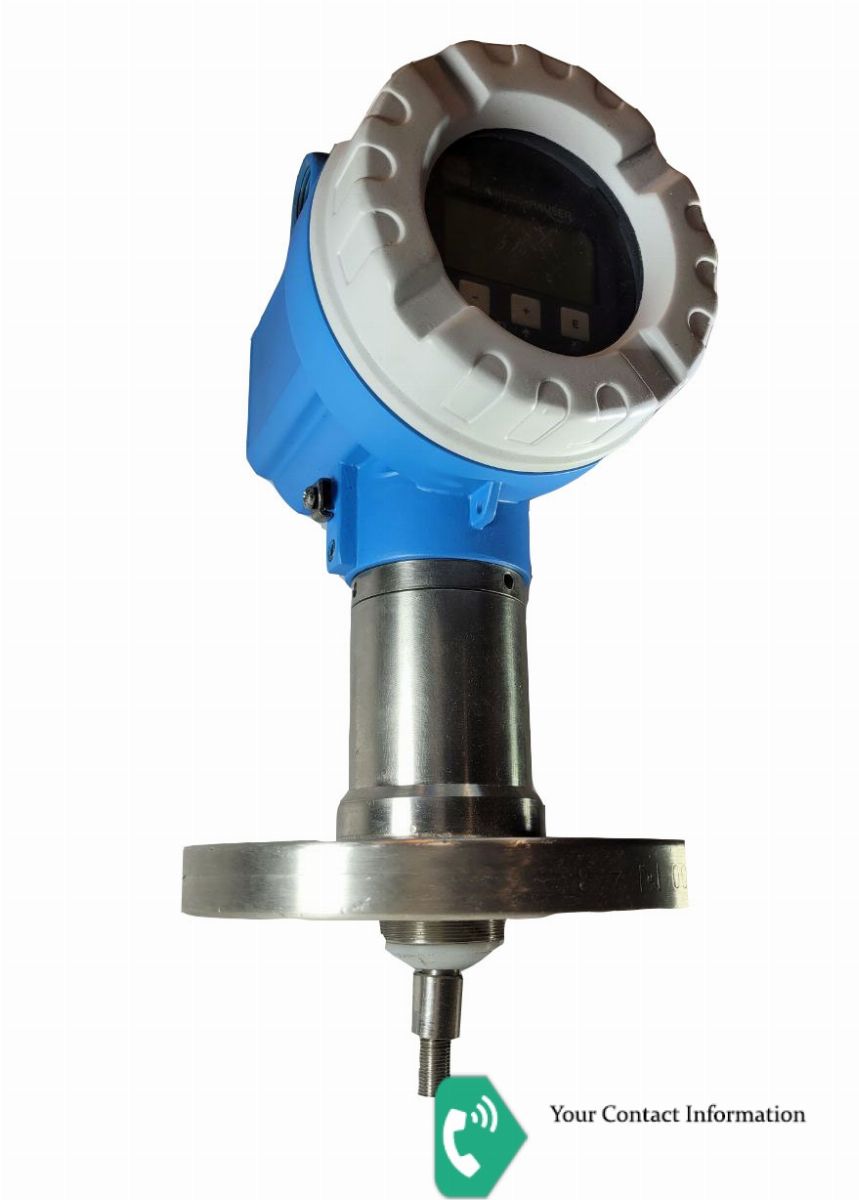

FMP40-ABB2CGJB21AA
Approval: A = Non-hazardous area
Probe: B = Rope 6mm / 1/4", solid
Probe Length: B = ..... mm, rope 6mm, 316
O-Ring Material; Temperature: 2 = Viton; -30...150oC/-22...302oF
Process Connection: CGJ = DN50 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
Power Supply; Output: B = 2-wire; 4-20mA SIL HART
Operation: 2 = 4-line display VU331, Envelope curve display on site
Type of Probe: 1 = Compact, basic version
Housing; Cable Entry: A = F12 Alu, coated, IP68; gland M20
Additional Option: A = Basic version
