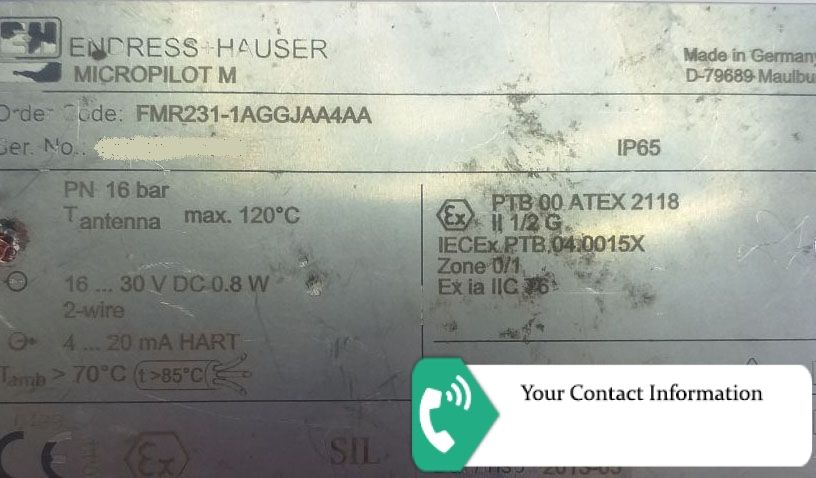

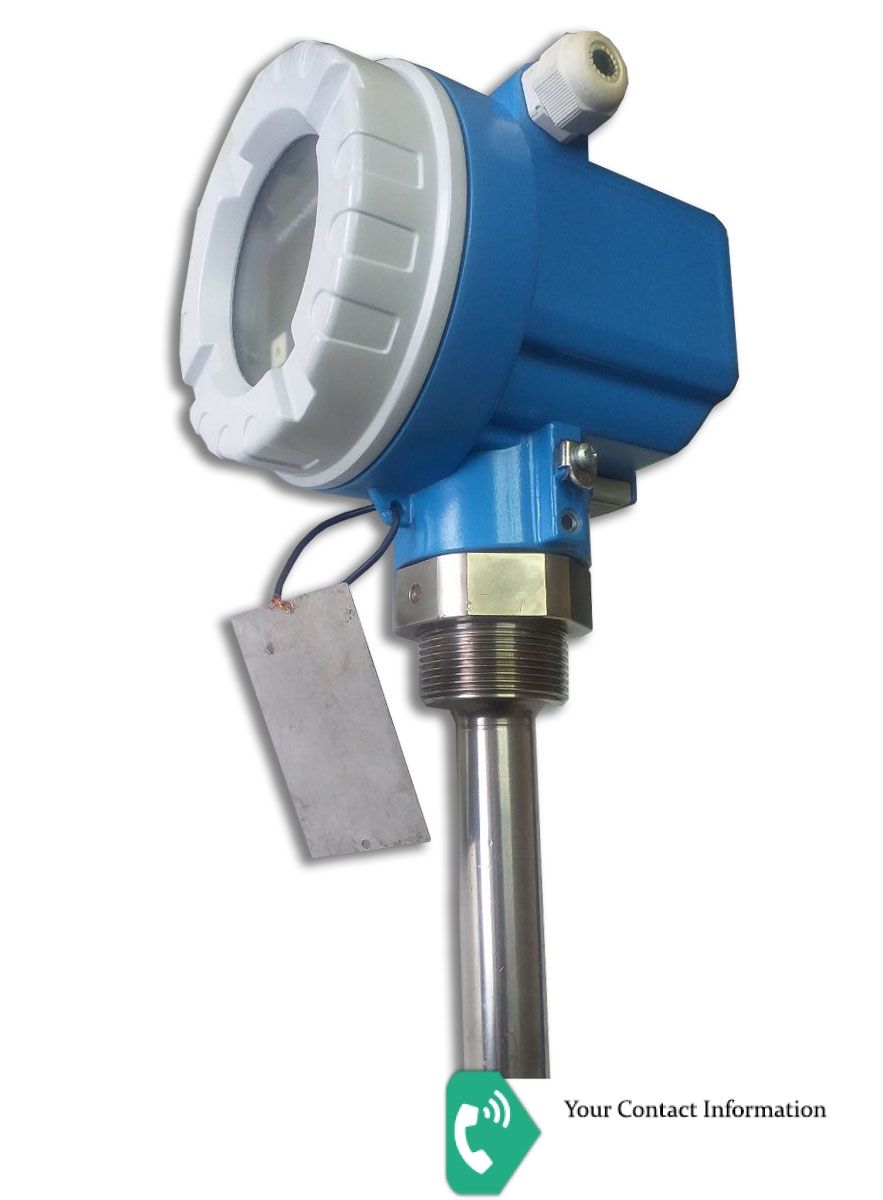

FMR231-1AGGJAA4AA
Approval: 1 = ATEX II 1/2G EEx ia IIC T6, IECEx zone 0/1
Antenna; Inactive Length: A = PPS antistatic 360mm/14"; Viton, 316L; Nozzle height max 100mm/4"
Process Connection: GGJ = Thread EN10226 R1-1/2, 316L
Output; Operation: A = 4-20mA SIL HART;4-line display VU331, Envelope curve display on site
Housing: A = F12 Alu, coated IP65 NEMA4X
Cable Entry: 4 = Thread NPT1/2
Gas-Tight Feed Through: A = Not selected
Additional Option: A = Basic version
