Endress+Hauser
10L1Z-QC1A1AA0A4AA

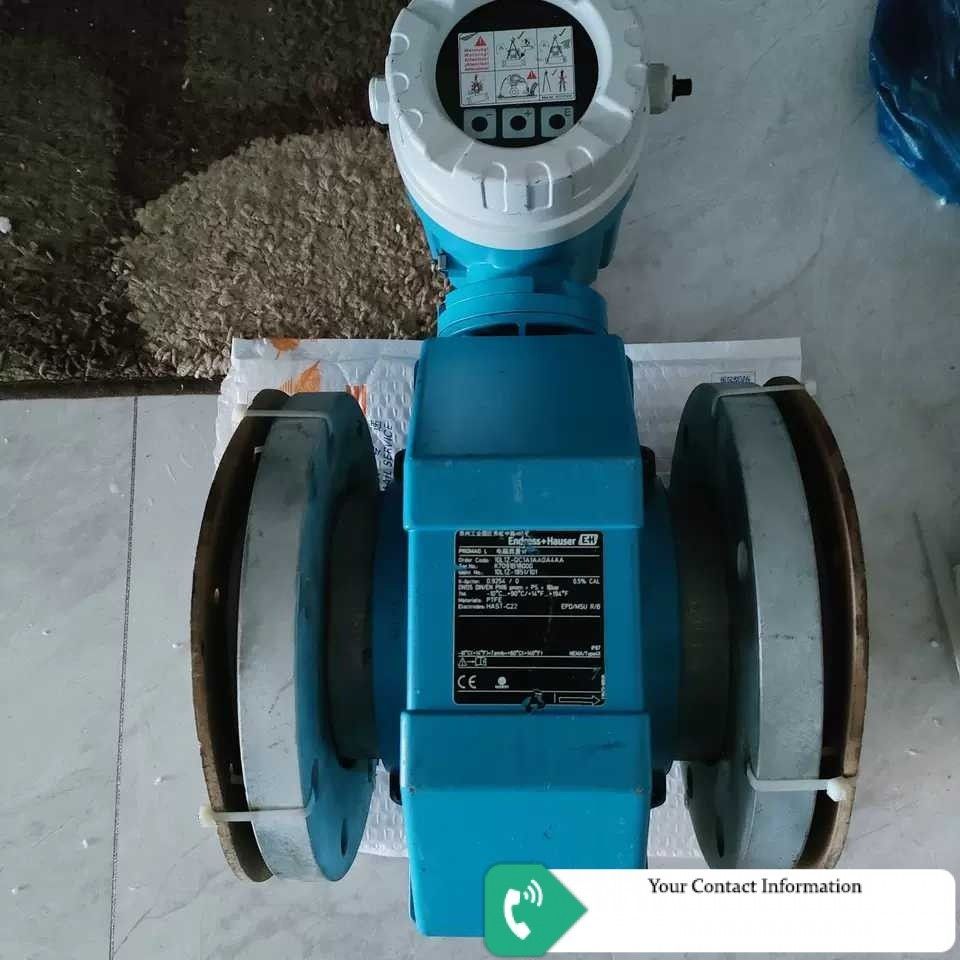

Proline Promag 10L electromagnetic flowmeter
The flowmeter with a weight-optimized sensor and high cost-effectiveness
Promag 10L1Z, DN125

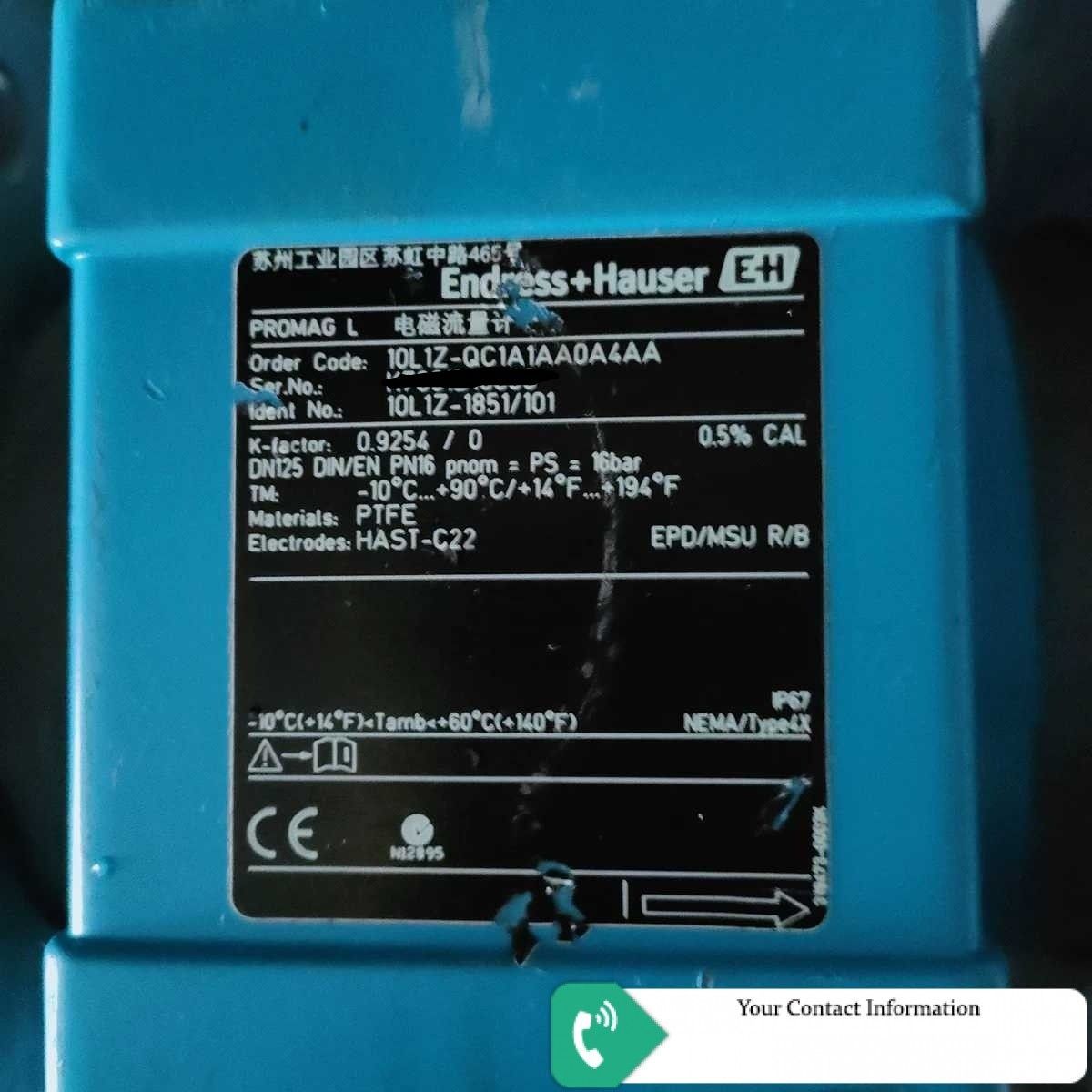

10L1Z-QC1A1AA0A4AA
Liner: Q = PTFE
Process connection: C = PN16, St37-2, lap joint flange EN1092-1 (DIN2501)
Electrodes: 1 = Alloy C-22
Calibration: A = 0.5%
Additional test: 1 = w/o
Approval: A = Non-hazardous area
Housing: A = Compact Alu, IP67 NEMA4X
Cable, remote version: 0 = Not used
Cable entry: A = Gland M20
Power supply; display: 4 = 85-250VAC; 2-line, push buttons
Adjustment; software feature: A = Factory setup; basic version
Output: A = 4-20mA HART + impulse passive
