National instrument

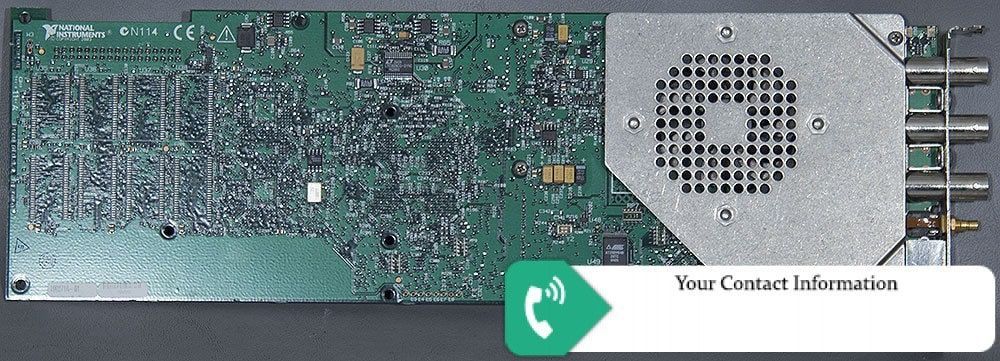

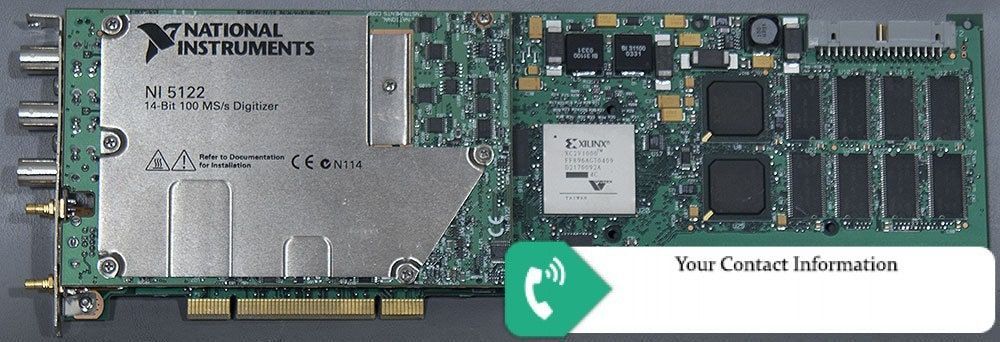

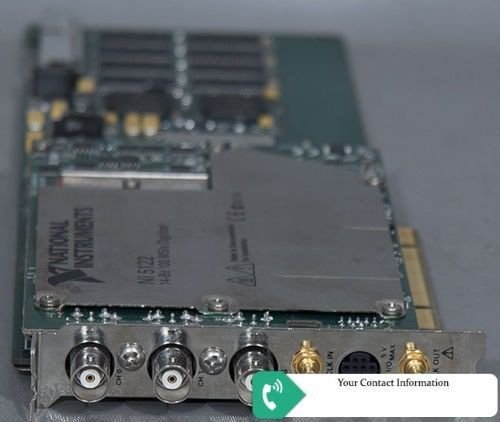

PCI-5122
100 MHz Bandwidth, 100 MS/s, 14-Bit PCI Oscilloscope Device—The PCI‑5122 high-resolution oscilloscope device has two channels with greater than 75 dBc spurious‑free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering. Oscilloscope devices also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 100 MS/s and 100 MHz of analog bandwidth.
Type = Oscilloscope
Maximum Bandwidth = 100 MHz
Maximum Sample Rate = 100 MS/s
Voltage Input Channels = 2
Analog Input Resolution = 14 bits
Dimensions = 14.0 in × 0.8 in × 4.4 in.
